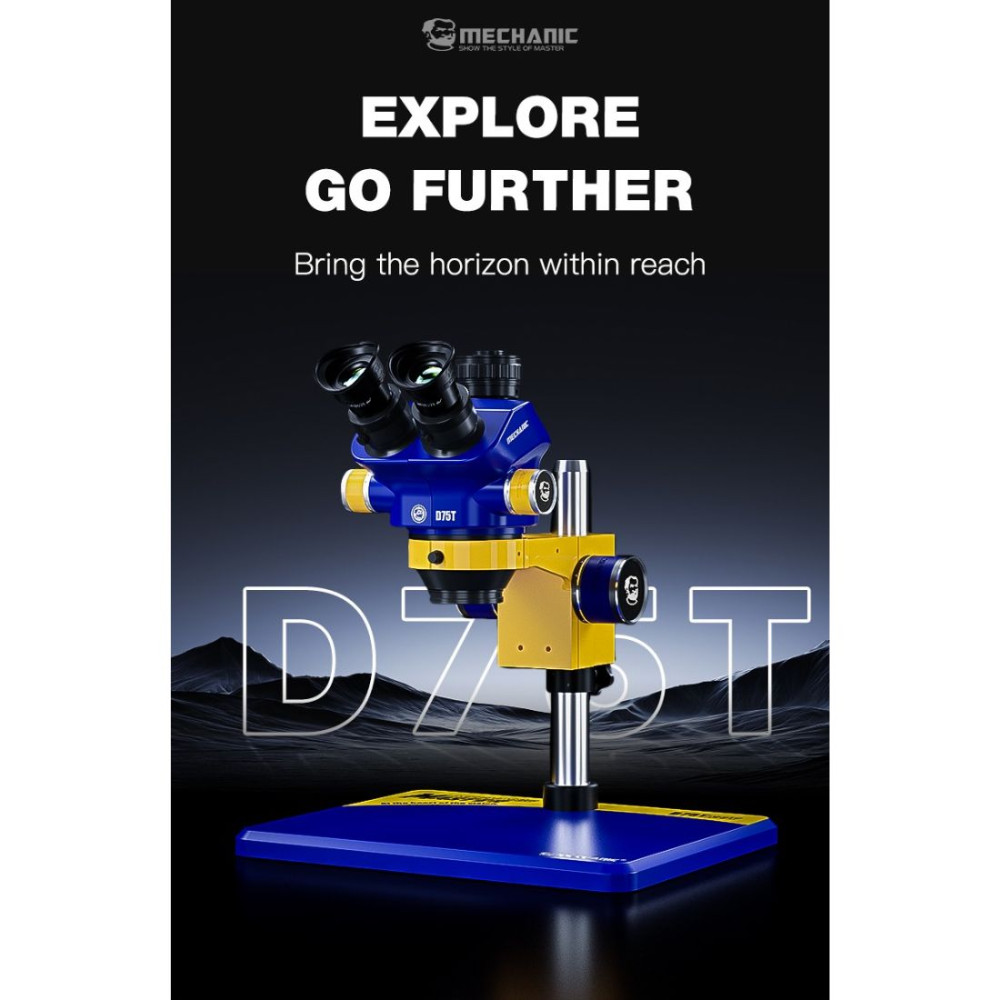

Mechanic D75T-B11 (3D Continuous Zoom) 7X~50X Trinocular Stereo Microscope

MECHANIC D75T-B11 7X-50X HD OPTICAL TRINOCULAR STEREO MICROSCOPE FOR PCB MOTHERBOARD INSPECTION.

Features:

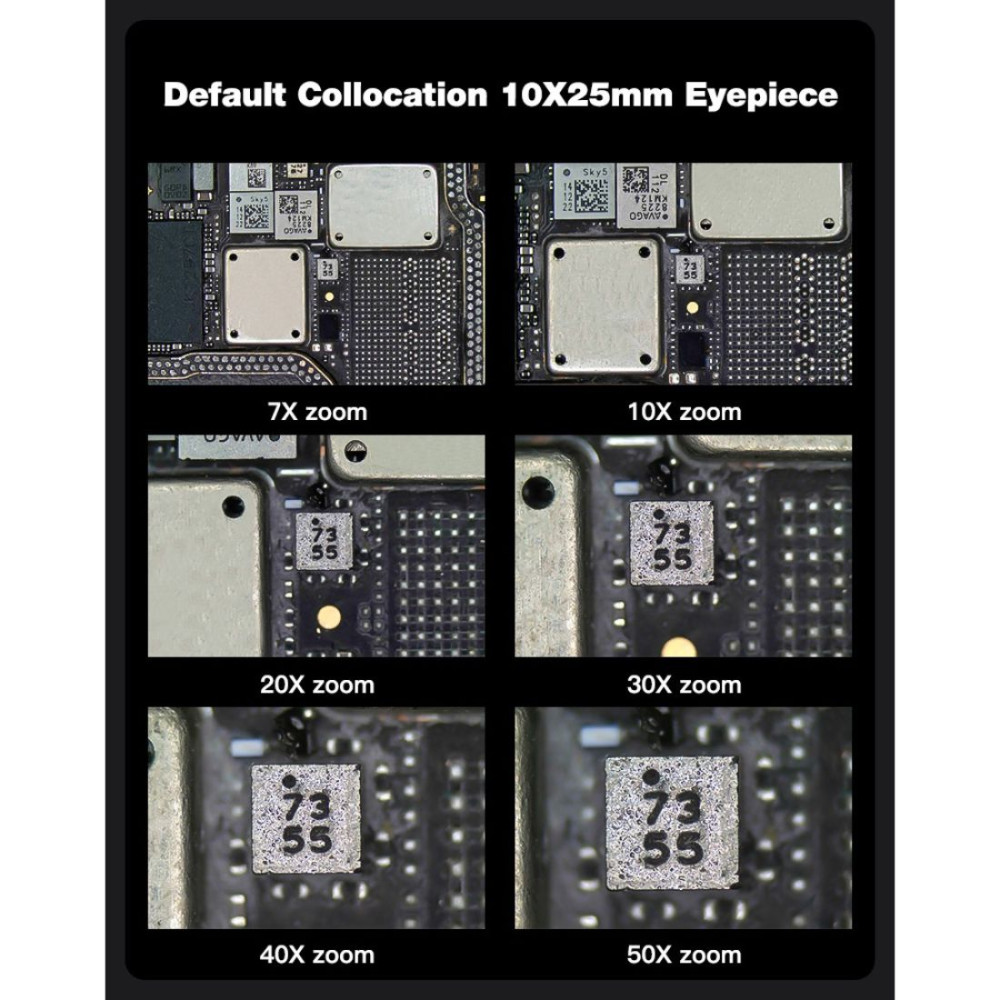

• 7X-50X zoom magnification power with crisp sharp images
• Wide field of view* Sturdy all-metal pillar stand
• High resolution with great flatness and contrast, giving sharp and clear images
• Sharp stereo erect images with a wide field of view
• Crystal clear original true-co microscope images
• Large working distance Sturdy all-metal table stand
• Accurate alignment reduces eye strain for longer periods of viewing

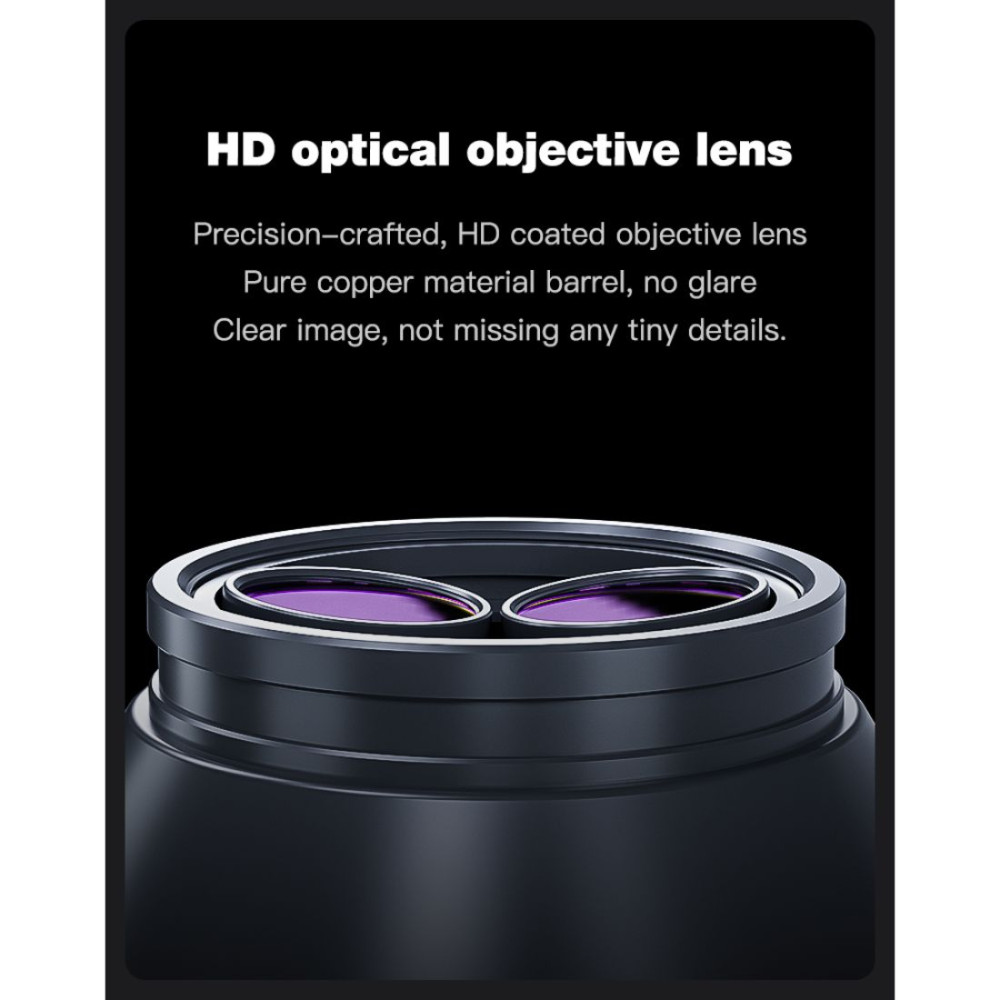

• Full optical glass elements
• Adjustable inter pupillary distance
• Adjustable bracket, lifting range:50mm; easy to operate
• Viewing head: Binocular head Inclined at 45 degrees, Continuous magnification objective lens 6.5X-67X, inter pupillary distance 54-76mm, bilateral visibility adjustable

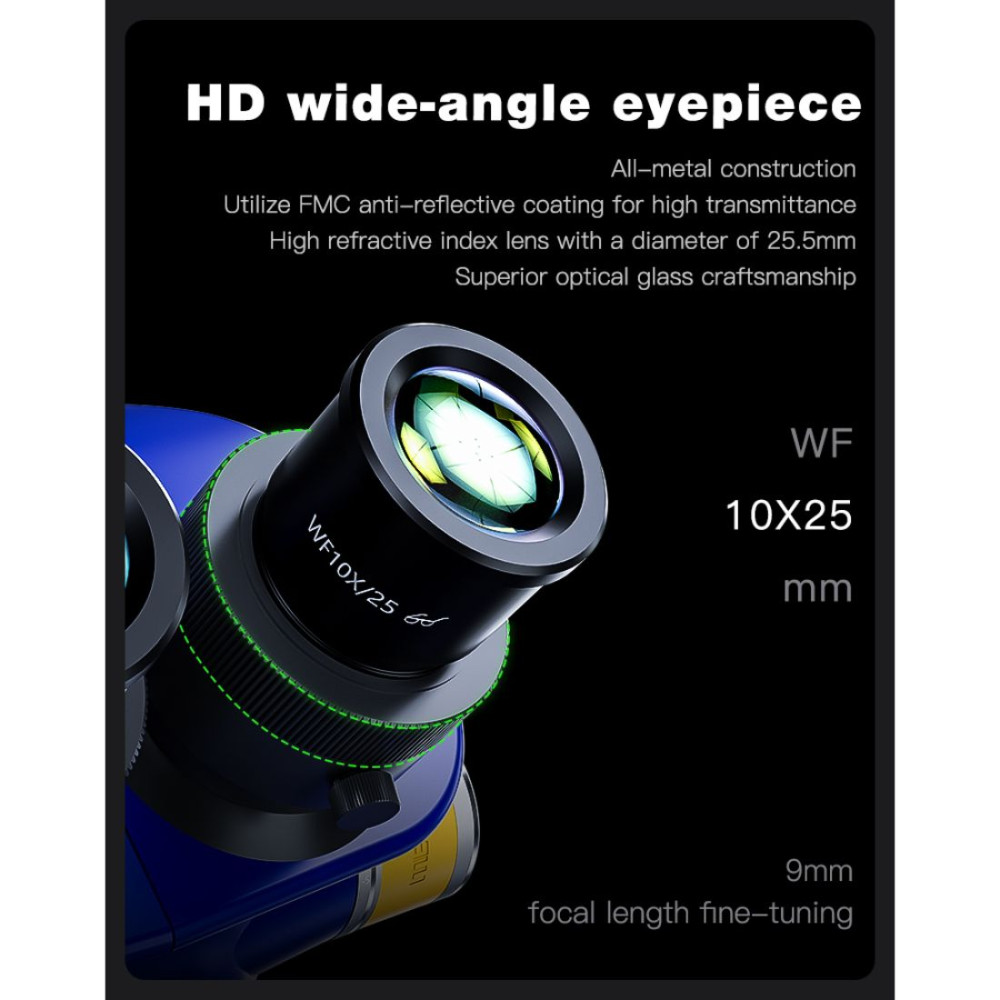

• Eyepiece: WF10X/25mm High Eyepiece
• Effective distance: 100mm, the use of auxiliary objective lens can be extended 30mm-287mm
• Magnification:7X-50X

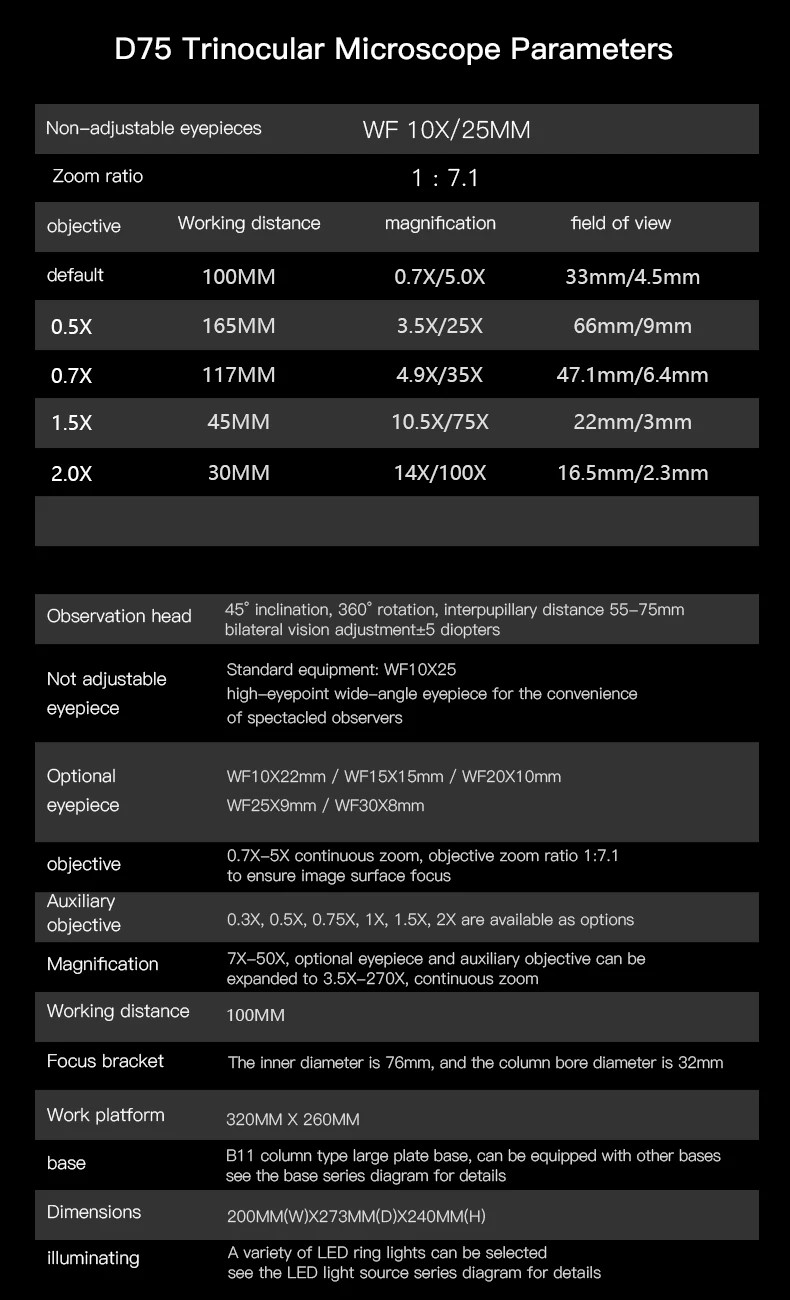

Specification:

• Product Name: Industrial grade trinocular stereo microscope
• Product Model: D75T-B11
• Product Size: 195*253*225mm
• Magnification: Standard 0.7-4.5X(Optional 2.1X-180X)

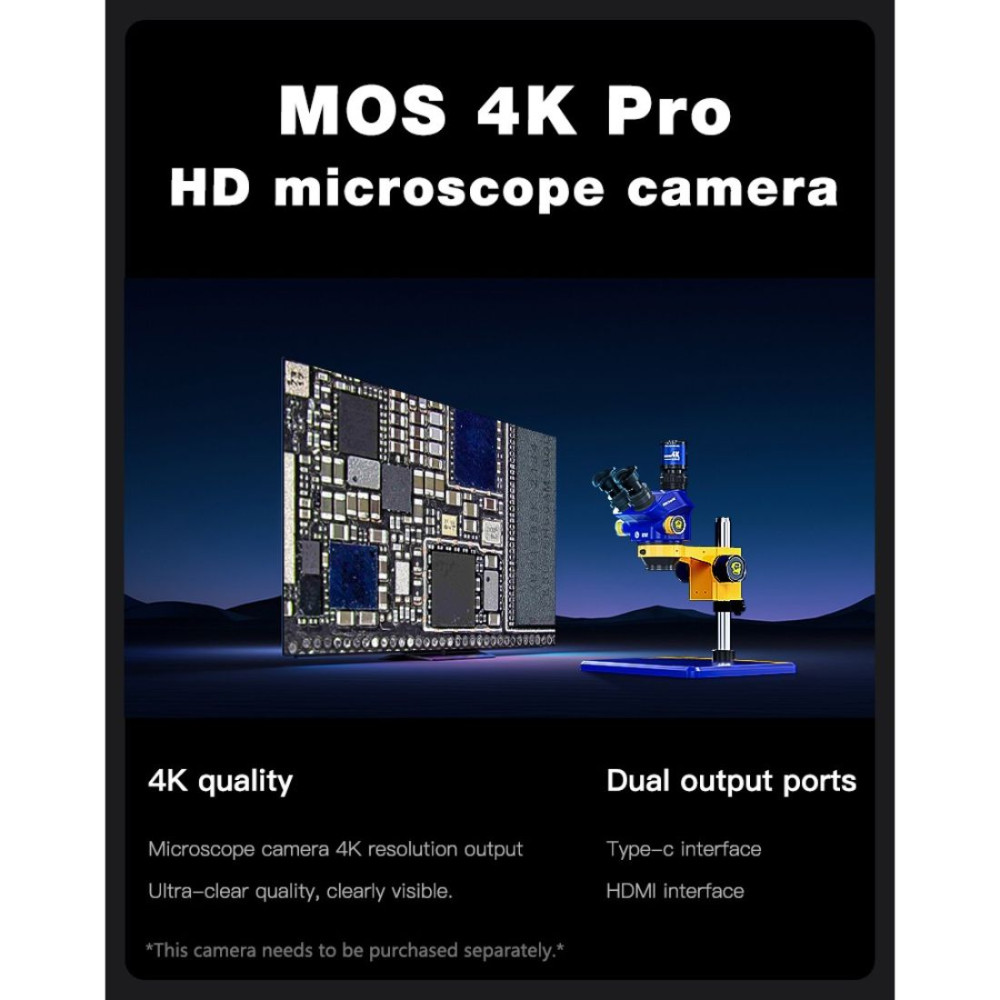

• Eyepiece: 0.5X CTV HD electron microscope

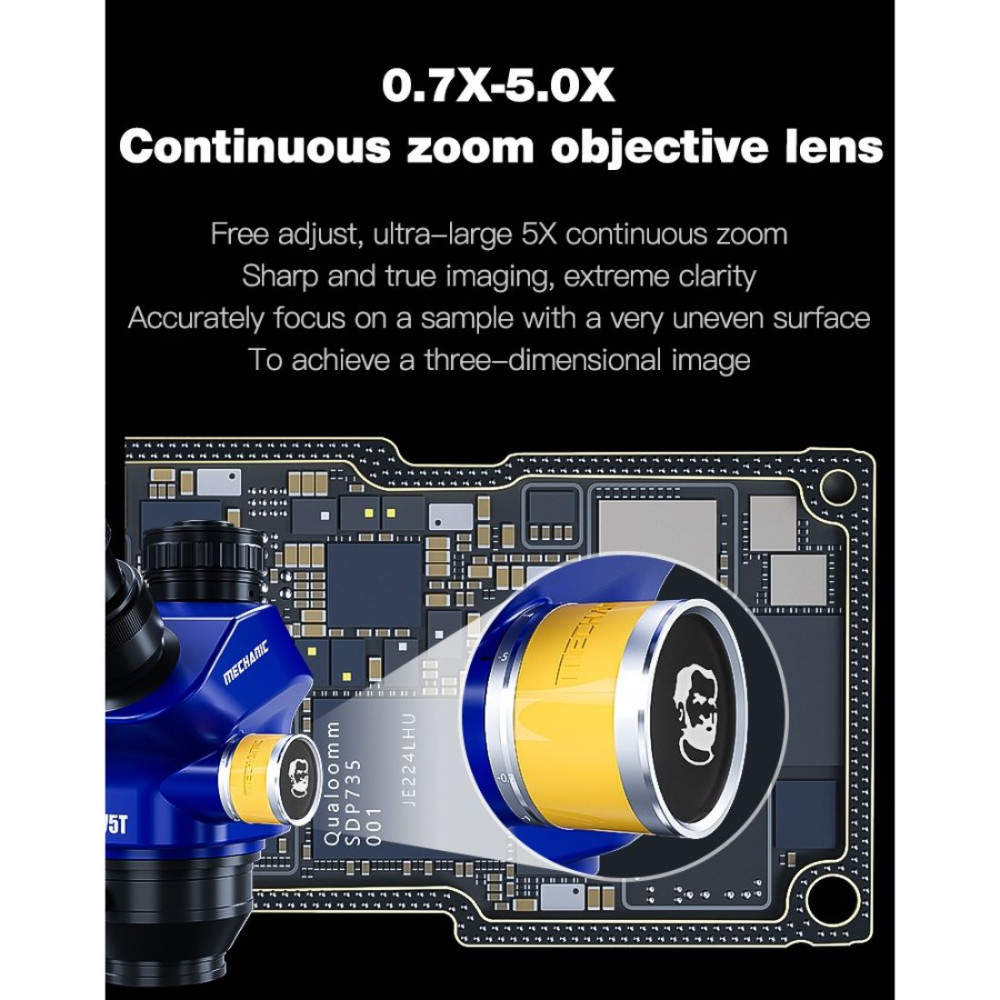

• Objective Len: 0.7X-50X
• Eyepiece: WF10X25 High Eyepiece
• Observation Head: Binocular observation head 45°tilt, eyepiece pupil spacing adjustment range 54-76mm; Binocular visual acuity adjustable

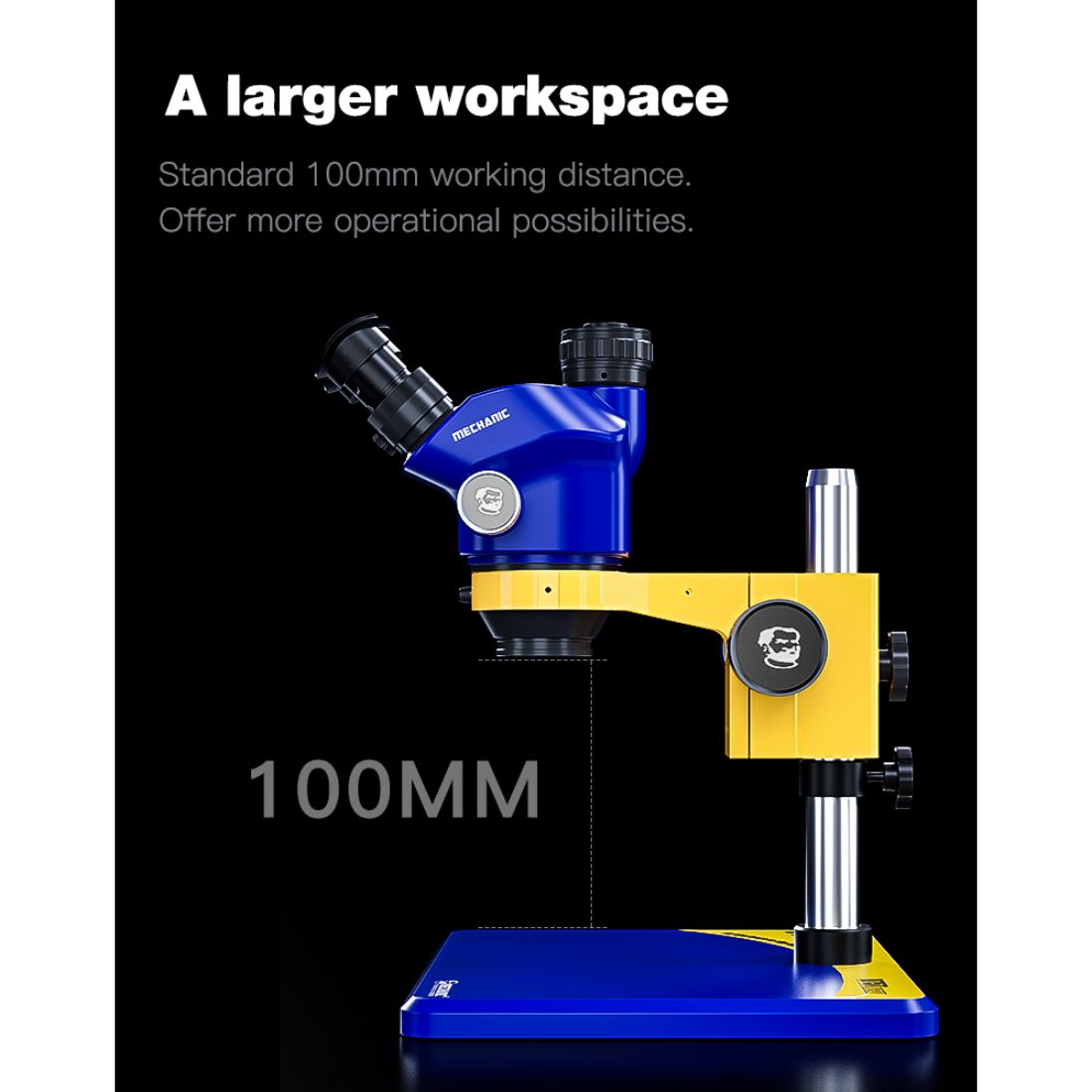

• Working distance: The effective distance is 100mm, and the purchase of an auxiliary objective lens can be extended to 30-287mm

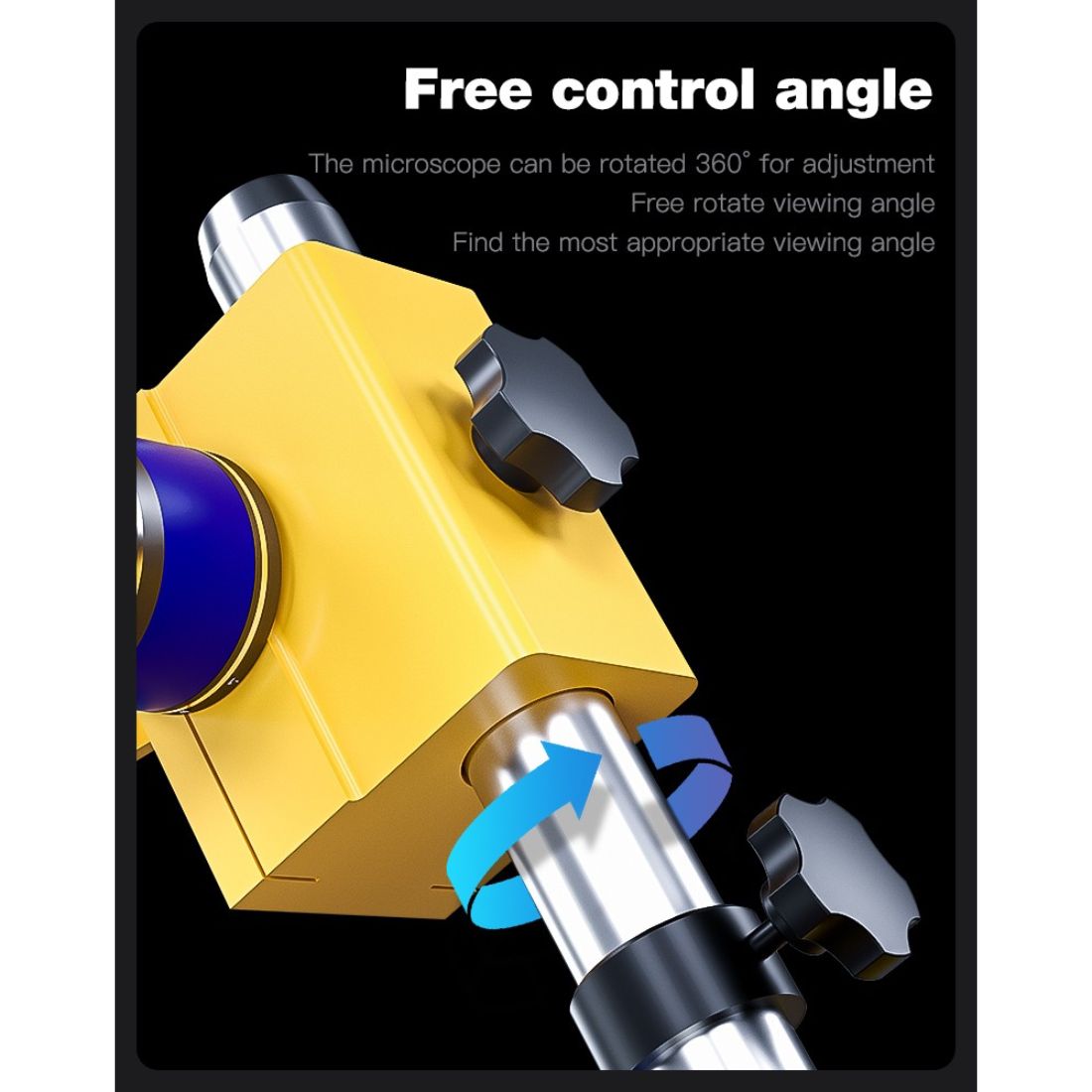

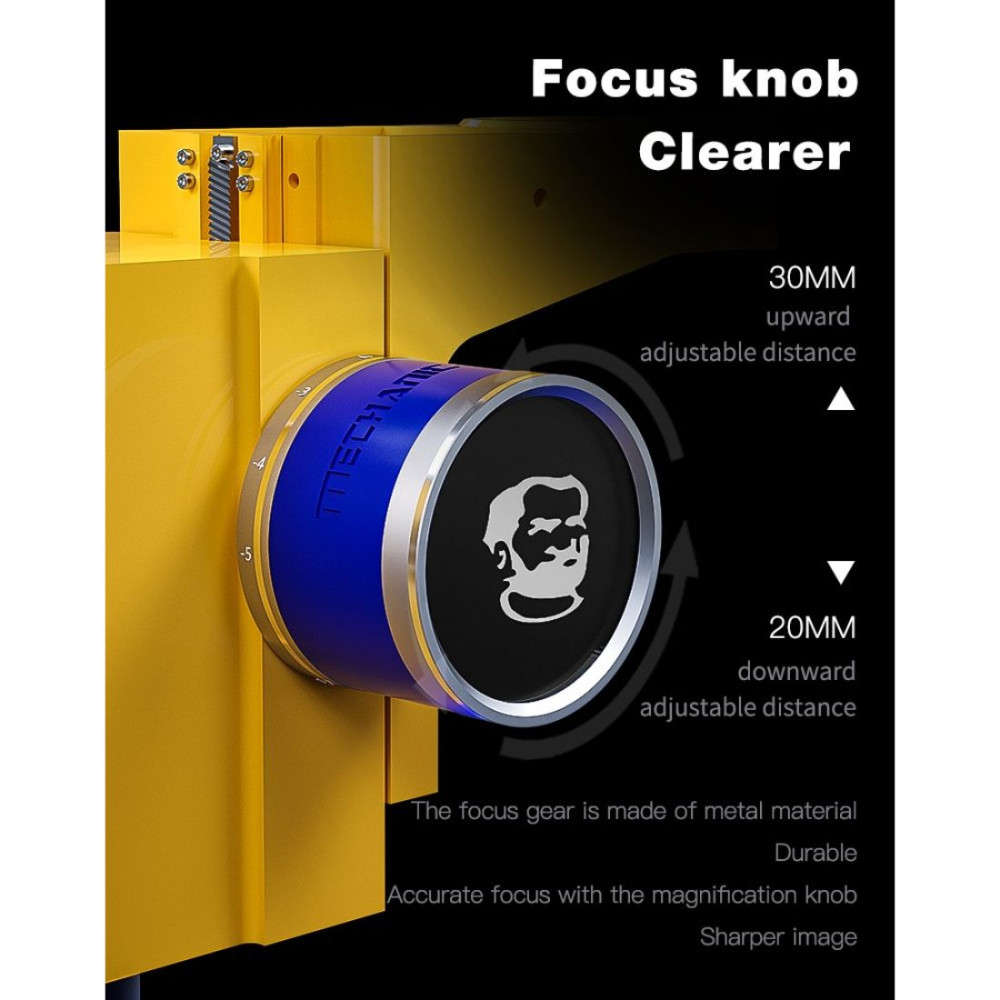

• Focusing bracket: Adjustable elasticity of focusing hand wheel, lifting range 50mm

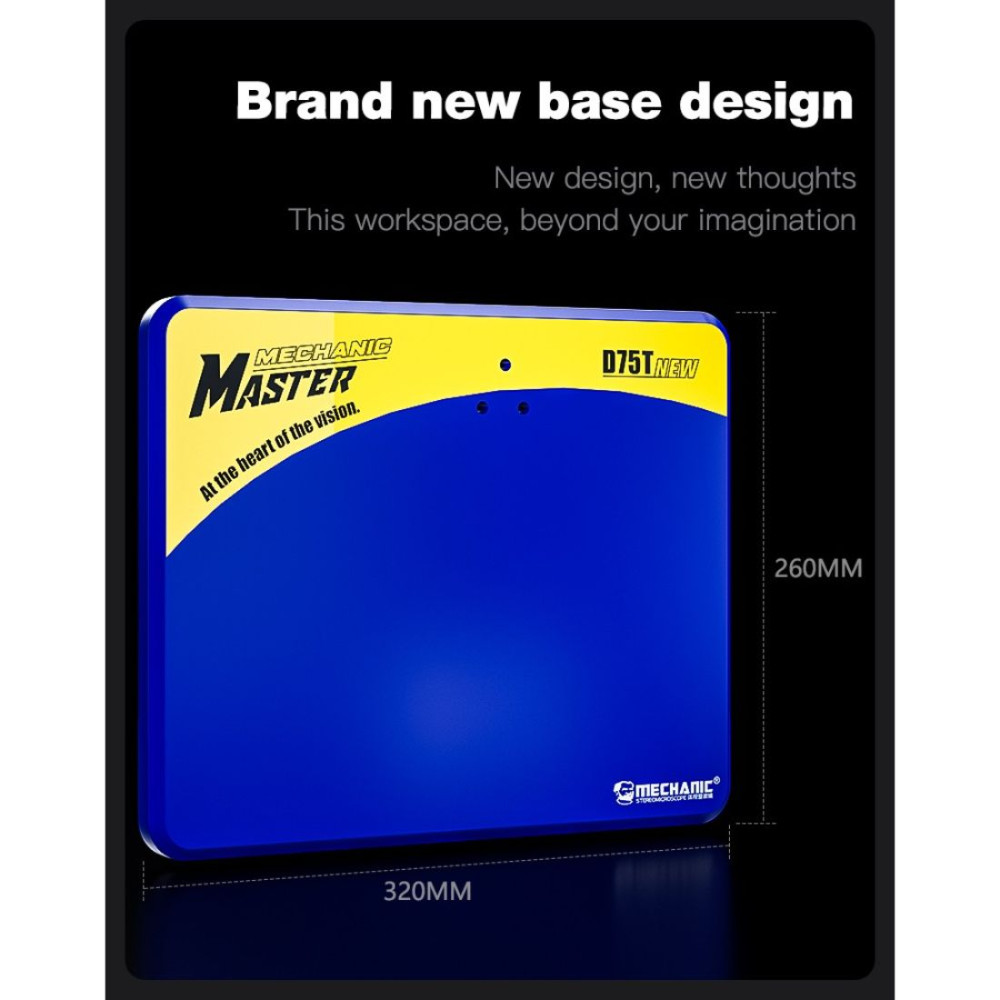

• Base Size: 200*273*280mm
• LED light source: High brightness cold white light source, can be adjusted freely
• Applicable Fields: Teaching Demonstrafion, PCB electronics signal mobile phone processing and repair Component Assembly, electronic component detection

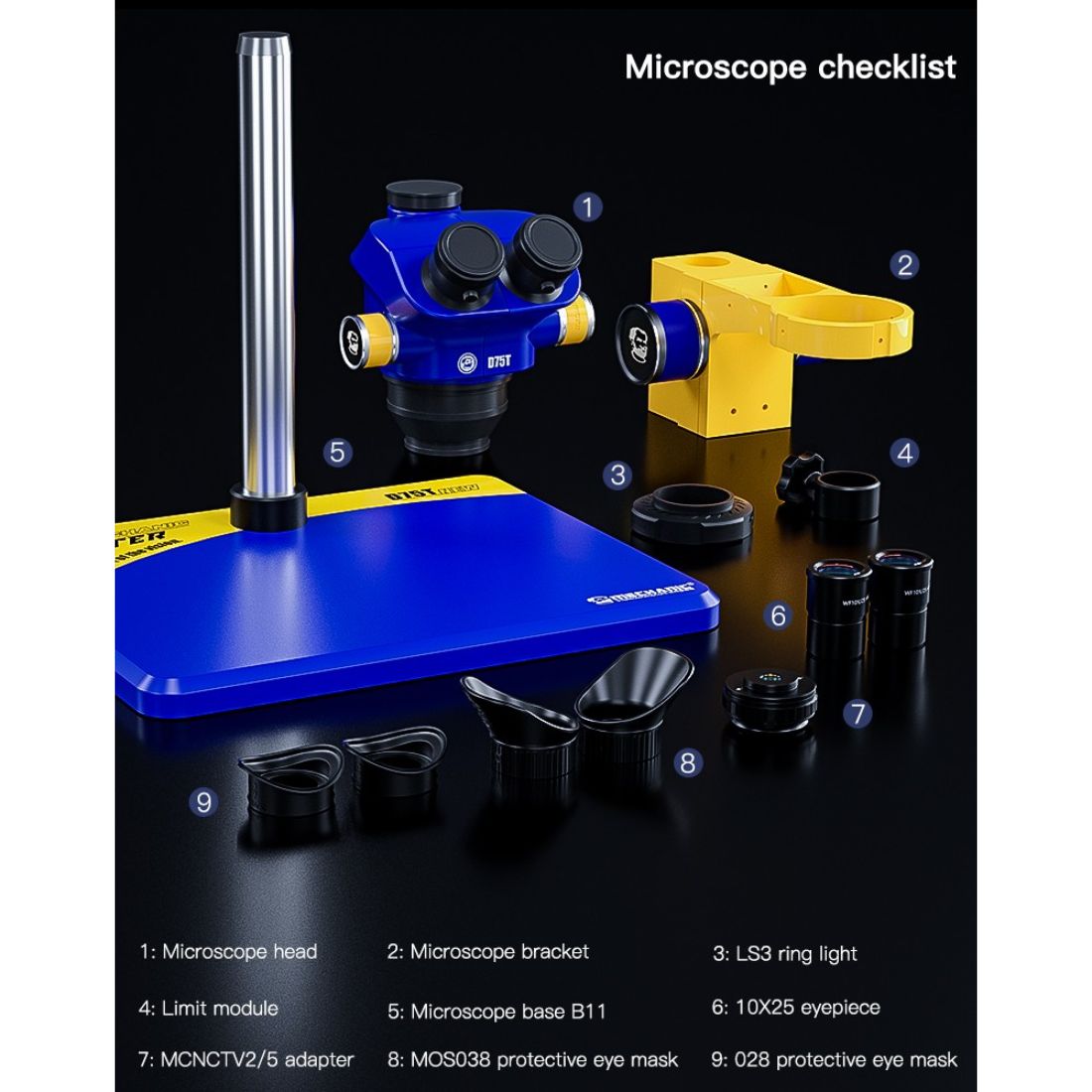

Package includes:

• 1 x Microscope Head
• 1 x Dust Bag

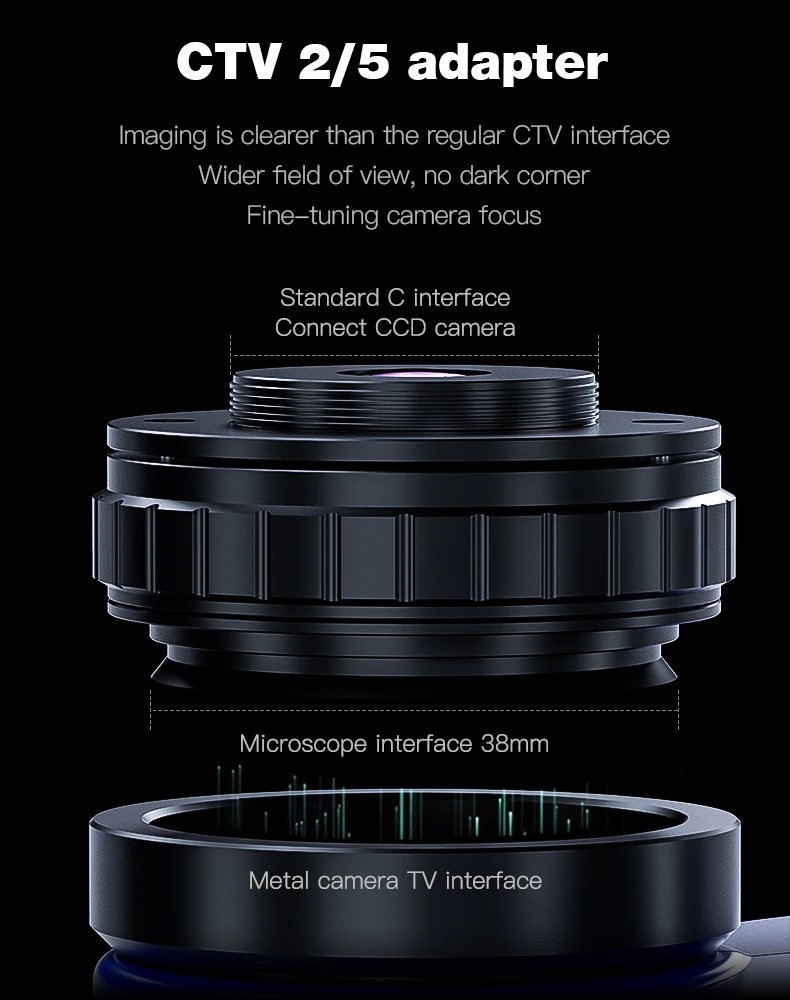

• 1 x 0.5x Ctv Lens
• 1 x Dust proof mirror
• 1 x Focusing arm
• 1 x Metal Base (100 mm)
• 2 x WF10X25 Eyepiece
• 4 x Rubber eye guards
• 1 x Double-sided loading plate
• 1 x LED ring lamp
• 1 x Safety manual
