Id: 3335
- Item Code/Product Code: RF-7050 PRO
- Weight: 5.00kg

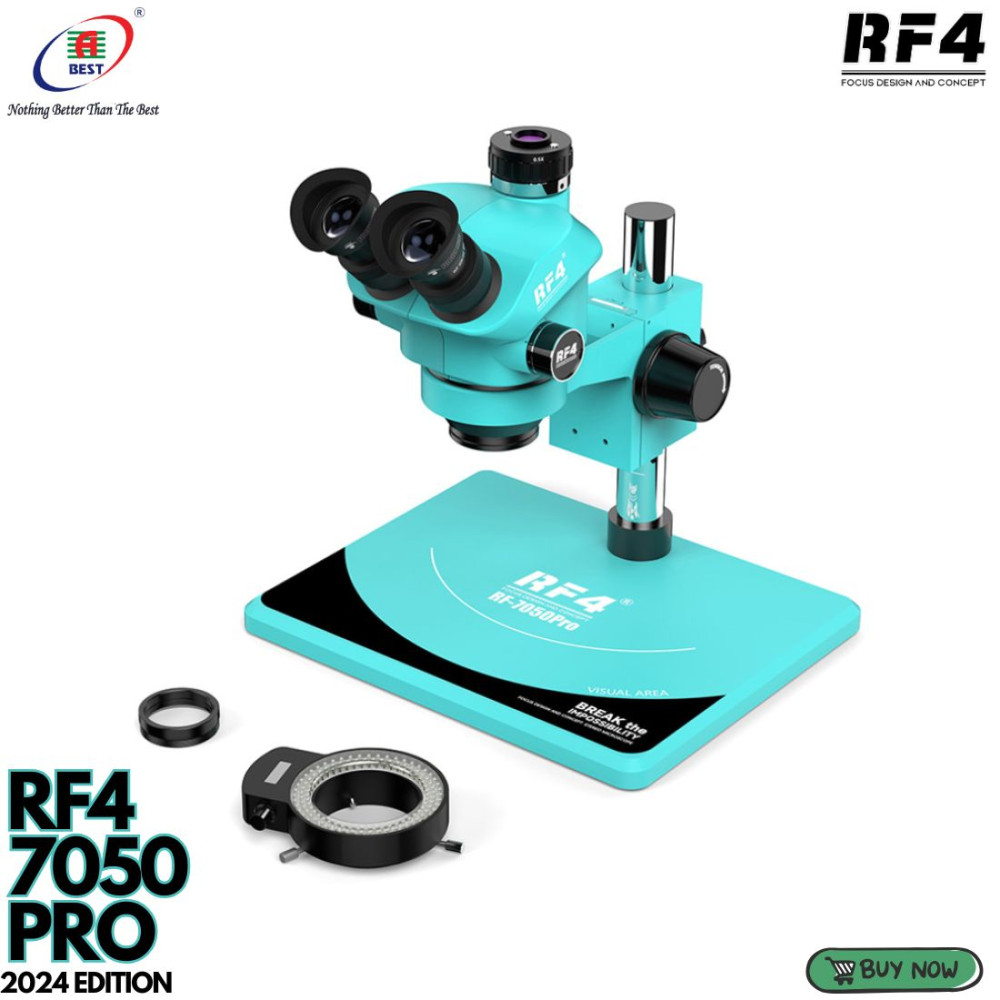

RF4 RF 7050 PRO Trinocular Stereo Microscope 7X-50X – Gear Zoom 3D
RF4 RF7050-PRO Trinocular Stereo Microscope with 3D Continuous Gear Zoom, 0.5X CTV Camera Zoom Lens & Adjustable LED Light delivers precise 7X–50X magnification. Ideal for PCB soldering, lab inspection, and industrial quality control with enhanced optics and ergonomic design for long-term use.
Product Introductions:
· Simple
Operation & Versatile Use
RF4 RF7050-PRO stereo microscope is easy to operate and widely used across
zoology, biology, botany, entomology, histology, mineralogy, archaeology,
geology, and dermatology.
· Application
in Textile Industry
Commonly used for inspecting raw materials and cotton-wool fabrics, ensuring
quality in textile production.
· Essential
for Electronics Industry
Ideal for triode welding, mobile phone electronic maintenance, watch repair,
and other detailed inspection tasks.
· Biological
Anatomy Applications
Utilized in biological and regional anatomical studies for clear and magnified
structural observation.
· Precision
Manufacturing Support
Helps observe machine tool processes and assists in checking and assembling
precision components.
· Optical
Surface Inspection
Used to check the surface quality of lenses, prisms, and other transparent
substances with precision rulers.
· Broad
Industrial & Research Use
Extensively applied in cultural relics, books, coins, artwork inspection,
textile products, chemical materials, plastic goods, electronics, machinery,
pharmaceuticals, food processing, printing, academia, and archaeological
research
Features: Clear stereo sound, wide field of vision. Pupils are 54 to 75 mm apart.
The Angle of the observation head is 45°, and the diopter of the two tubes is adjusted. Simple operation, no fatigue after long-term use. Wide Field of View Eyepiece WF10X/22mm 10X wide-angle eyepiece with a field of view of 22mm, flat high Angle design, better for search and observation. Ergonomic design, shift hand wheel horizontal (axial) two-way setting, high repetition accuracy.
Product parameter :
Supporting parameter
Column aperture: Φ32mm
Lens aperture: Φ76mm
Center distance: 155mm
Lifting range: 50mm
Base parameter
Column height: 240mm
Diameter: φ32mm
Base: 380 x260x18mm
Wide-angle eyepiece 10X/22
Magnification: 10X
Wide visual field 22mm
Matching size: 30mm
Applicable models are stereoscopic, fixed and continuous magnification microscopes.
The optimal eye height ensures that users can obtain clear images under different visual conditions. High angle wide-angle eyepieces are convenient for observers wearing glasses
0.5X adapter
1.The material is all metal, the black part is aluminum alloy, and the silver part is copper chrome plated bayonet.
2.The adapter ring can use LCD to focus. This focusing mode is manual.
3. The adaptor has a transparent mirror inside that helps the microscope display and other displays achieve synchronous zoom.
4 Weight: 0.09kg.
5. RF4 Adjustable 144 LED Lighting Ring Light Source
Parameters
Input AC 100-240V, 50/60Hz
Output DC 12V, maximum 700mA
Maximum output 4.5w-6w
Eu/USA
Lead 144 LED
Lighting (30,000-35,000 Lux)
Color temperature 6000-7000 k
Light white
Inner diameter 60mm
144-led light ring
Power adapter
(1) 144 LED ring lights are specially designed for stereo microscopes and are the best companion for various microscopes and cameras.
(2) It provides the best amount of light for a microscope or camera when additional light sources are needed or when light is insufficient.
(3) Inspection and quality control is no longer a matter of looking at surface defects, and the associated visibility issues are addressed.
(4) Protect users and equipment from mild to severe static electricity
(5) Brightness adjustable, flexible to adapt to any work and consistent lighting object lighting
(6) Adjustable screws for fixing the lamp on the microscope.
(7) Provide cool, uniform, no glare, no focus shadow lighting
(8) Low temperature, even if used for a long time, can also maximize the user's comfort and operability
Dust goggles are used to protect against smoke, oil and dust
It is the ideal lens for every microscope to work together in any condition without affecting its condition to prevent dust, smoke or oil from entering the microscope. Protect the microscope and extend its service life.
1. High quality materials ensure the durability and stability of products
2. Whether the objective lens can be protected to effectively prevent smoke generated during welding from entering the objective lens
3. The high transparency of the lens does not affect observation
4. Beautiful process, strong lens applicability
Package includes:
1 x Microscope
1 x Aluminum Alloy Plate ( 260MM * 260MM )
1 x 144 LED Light
1 x Dust proof Lens
1 x 0.5X CTV Lens
1 Pair Rubber Guard ( RF4-EM5 )
1 Pair WF10/22 Eyepiece
1 x Microscope Dust Cover
