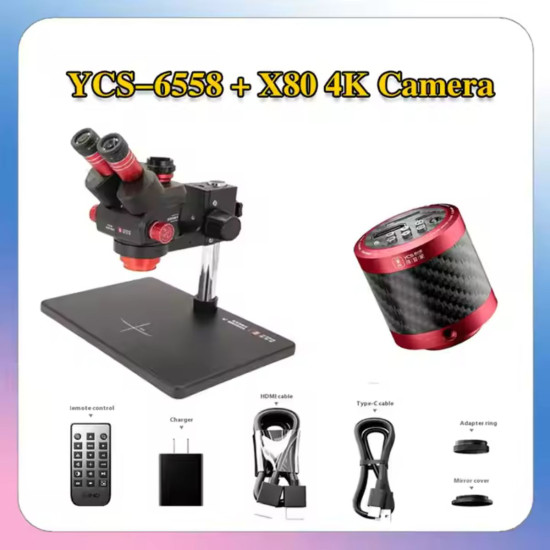

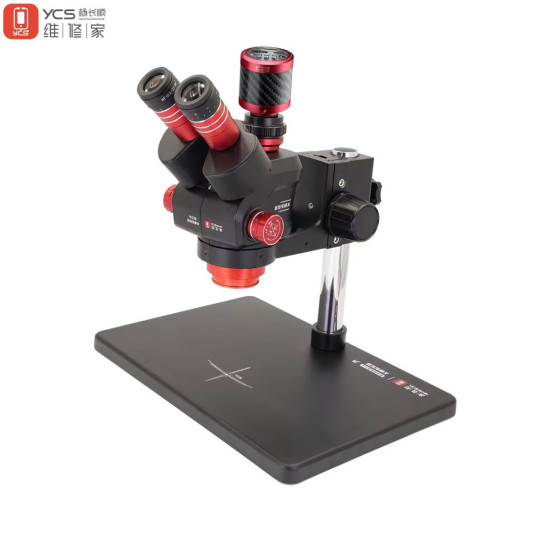

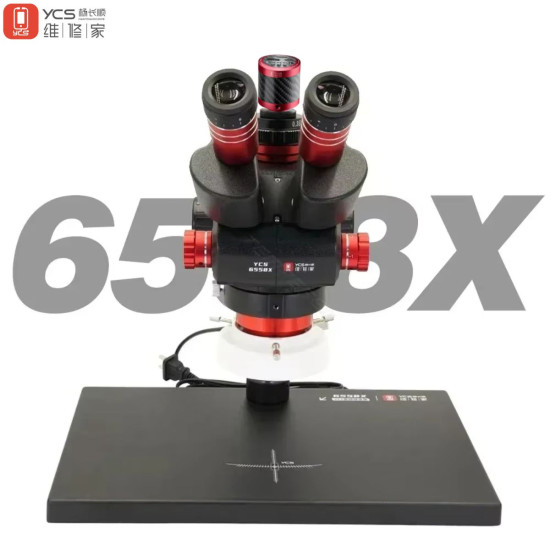

YCS 6558X Trinocular Stereo Microscope with YCS-X80 4K HDMI/Type-C Camera – 6.5X~58X (3D Continuous Zoom) 0.35X CTV Lens, 144-LED Adjustable Ring Light
Id: 4034
- Item Code/Product Code: 6558X+X80
- Weight: 6.80kg
₹23,499.00
₹24,000.00
Ex Tax: ₹23,499.00
YCS 6558X With YCS X80 4K Camera (3D Continuous Zoom) 6.5X~58X Trinocular Stereo Microscope With 0.35X CTV Camera Lens & 144 Adjustable Led Light
The YCS-6558X is a high-performance trinocular stereo microscope designed for professional use in electronics, precision repair, biological research, and industrial inspection. With its wide magnification range, flexible design, and high-quality optics, it is ideal for detailed and fatigue-free observation.
Key Features:
- Zoom Range: 6.5X – 58X continuous magnification for crisp, clear imaging across a wide field of view.
- Eyepieces: High eye-point wide-angle eyepieces (WF10X/23) with 23mm diameter lenses for comfortable, long-hour use without eye strain.
- Trinocular Design: Equipped with a third optical port and a CTV 0.35X adapter, ideal for connecting a camera or display screen.
- 360° Adjustable Lens Head: Full rotation of the lens module enables flexible working angles without disturbing your setup.
- High Transparency Optical Glass: Delivers crystal-clear visuals and reduces fatigue during extended viewing sessions.
- Dustproof Lampshade: Protects internal components and light source from dust, ensuring longer life and consistent brightness.
- LED Adjustable-Control Light Source: Energy-efficient, adjustable brightness, snap-on design with no dark spots.
- Modular Design: Compatible with various bases and brackets—can be used with the original base or other types.
- Adjustable Arm & Rotation: The microscope body is mounted on a flexible support arm and vertical post for full positioning control.
- Stable Wide Base: Large anti-slip base ensures stability during precision work.
- Multi-Scenario Use: Suitable for mobile phone repair, PCB inspection, biological study, laboratory use, and precision instrument maintenance.
Package Includes:
- 1 x Microscope Body (Main Unit)
- 2 x WF10X/23 Eyepieces
- 1 x CTV 0.35X Camera Adapter Lens
- 1 x Adjustable Focusing Arm
- 1 x Vertical Support Pole
- 1 x Large Base Plate ( 380MM / 250MM )
- 1 x LED Light with Control ( 144 BULBS LED )
- 1 x Dustproof Lens Cover
- 1 x Rubber Eyecup Ring Set
- 1 x Position Limiter Ring
YCS-X80 Type-C / HDMI 4K Microscope Industrial Camera for Trinocular Microscope
Features:
- YCS-X80 4K camera, enjoy a high-definition world, 1/1.8 CMOS field of view true 4K output clearer, smaller, more stable, and faster
- Adopting imported CMOS technology image sensor, Sony 1/1.8-inch 4K, 8 million pixel CMOS sensor
- Highly integrated and flexible to use, small stature brings great benefits, highly integrated panel, easy to operate
- Standard C/CS height adapter ring can be connected to a three-eye microscope, reserve 4 1/4 inch screw holes to accommodate monster hand brackets, etc; HDMI/USB: All support 4K@30FPS/1080P@60FPS
- Wide applicability: USB connectors, mobile devices, PC motherboards, etc. can all be used
Specification:
- HDMI output: 3840*2160@30FPS, 1920*1080@60FPS
- Type-C output: 3840*2160, 2560*1440, 1920*1080, 1280*720, 640*480, 424*240, 320*240(MJPG)
- Input voltage: DC 5V
- Operation mode: Mouse, remote control, keypad, computer software
- CMOS sensor: Sony 1/1.8 inch
- Pixel: 8 million
- Pixel size: 1.45μm*1.45μm
- Hardware Interface: Type-C*1, HDMI*1, TF*1
- Structure expansion interface: 1/4-inch bracket interface *1
- Status light: Power on orange and yellow light
- Lens interface: C/CS standard interface
- Storage: TF card/computer software
- Buttons: Function buttons*6
- White Balance: Auto/Manual, support R, G, B adjustable
- Exposure: Auto/Manual
- Menu Language: Chinese/English/Traditional
- Photo/video: automatic and manual naming, customize the save path
- Electronic magnification: 5 times electronic magnification
Package includes:
- 1 x 4K Camera
- 1 x Remote Control
- 1 x HDMI Cable
- 1 x Type-C Cable
- 1 x Adapter Ring
- 1 x Cover
- 1 x Charging Head
