Product Id: 3105
- Item Code/Product Code: K-300DP
- Weight: 8.00kg
Specification:
Input voltage: 110-220V/50-60Hz
Eyepiece: 0.4 X
Objective magnification: 0.7x -5X continuous multiplication
Standard working distance: 100mm
Field of view: 2mm-54mm
Focal length adjustment range: 49mm
Pixels: 2 million
Resolution: 1080P
Refresh rate: 60 frames
Sensitiser area: 1/2 inch
Product features:
1. optical amplification, electronic imaging, LED lighting integrated built-in design.
2. clearer optical observation effect, HD display, resolution up to 1080P.
3. convergence light path design, larger field of view, greater depth of field.

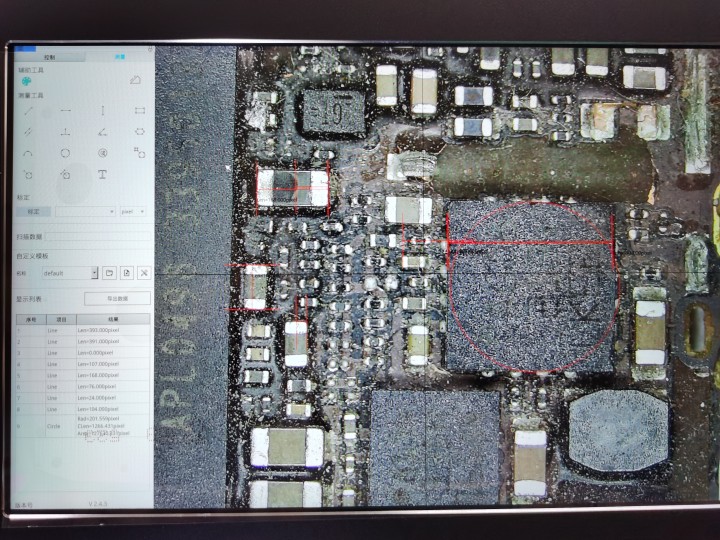

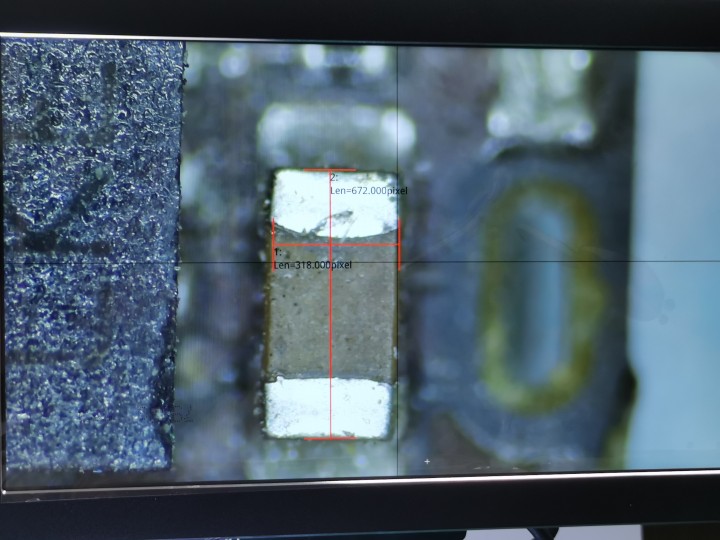

4. powerful software operation, can be measured, storage, photography, comparison.
5. optical magnification: 0.28X-2X as standard.
6. The objective lens is continuously doubled from 0.7x to 5X, and the ratio of the objective lens is 1:7
7. standard working distance up to 100mm, optional auxiliary objective lens, working distance can be extended to 75-210mm.
8. with 3D objective lens 360 degrees without dead Angle observation
9. with a variety of support base to expand the operation range, can observe objects in any direction.
Note: The actual magnification of the video microscope is determined by the optical and digital magnification of the objective
lens.
Total magnification = optical magnification ×(diagonal of computer screen ×25.4/CCD target size)
CCD target size: 1/4 '=4, 1/3' =6, 1/2 '=8.
Package Contains:
1 x Kaisi 300dp microscope
1 x 3D Barlow Attachment
1 x Led Light
2 x Power Adapter
1 x 12 inch LCD Display
1 x 360* Adjusting Angle
