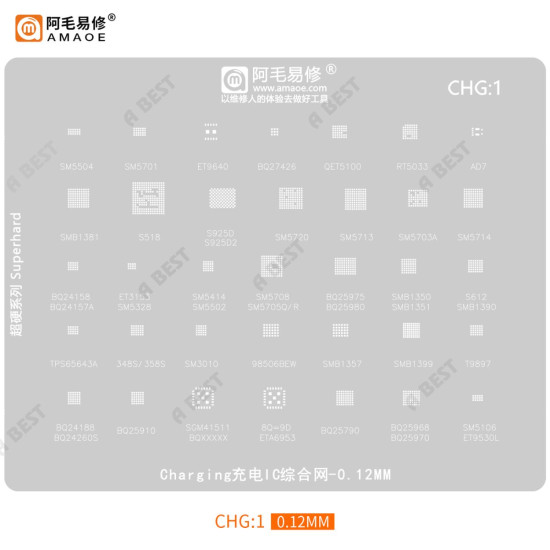

Amaoe CHG 1 Stencil For Charging IC for Reballing Tool For Mobile Phone Logic Board Repair

Precision Stencil for Charging IC’s Circuitry Repairs:

Features:

• Model-Specific Design: Tailored specifically for the CHG-1 For Samsung series , ensuring a perfect fit for precise repair work.
• High-Precision Cutouts: Detailed outlines for accurate application of soldering paste or for guiding component placement.
• Ultra-Thin Construction: Only 0.12MM thickness for superior flexibility and ease of use on intricate circuit boards.
• Durable Material: Crafted from high-grade, heat-resistant material to withstand the rigors of repeated use in high-temperature rework and soldering processes.
• Alignment Markings: Clear indicators for proper orientation and placement, ensuring flawless operation during micro-soldering tasks.
• Uniform Hole Distribution: Strategically placed holes to provide even distribution of soldering paste and minimize waste.
• Versatile Application: Suitable for various rework scenarios, including soldering, component replacement, and bridge prevention.
• Easy to Clean and Maintain: The stencil can be easily cleaned with standard solvent to ensure long-term usability.
• Protective Packaging: Comes with appropriate packaging to protect against bending and damage during storage or transport.

Model Numbers Supported:

BQ24195

BQ24196

BQ24197

BQ24198

BQ24159

SM5100

SM5101

SM5102

SM5103

SM5104

This professional-grade stencil is an essential tool for technicians specializing in mobile phone repairs, offering reliability and precision in one package.

Package Content*

1 x Stencil.
