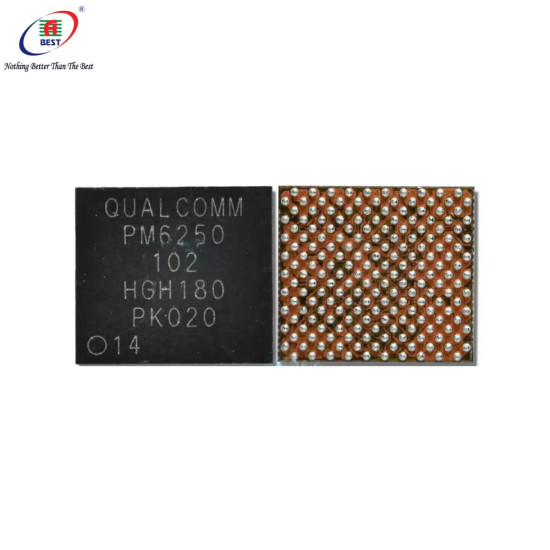

The PM6250 102 is a Qualcomm baseband power management integrated circuit (PMIC) widely used in several smartphones, including various models from Samsung & Xiaomi.
Device Compatibility:
- Samsung: Galaxy A525, A725
- Xiaomi: Redmi Note 9, Note 9 Pro, Xiaomi 10
Technical Specifications:
- Input Voltage Range: 3.0V to 5.5V
- Output Voltage Range: Configurable from 0.6V to 3.3V
- Output Current: Up to 2A per channel
- Efficiency: Up to 95% under optimal conditions
- Operating Temperature Range: -40°C to 125°C
- Package Type: QFN (Quad Flat No-lead) package, 4mm x 4mm
- Switching Frequency: Adjustable, typically around 1MHz
- Control Interface: I2C compatible for easy integration and configuration
- Standby Current: Low standby current for enhanced battery life
Repair & Replacement Notes:
- This IC is commonly replaced in devices experiencing issues like no network signal, baseband failure, or power-related problems.
- Professional installation is highly recommended due to the complexity of the component and the precision required for soldering.
- Ensure compatibility with your specific device model before purchasing a replacement.
Package includes:
