  • Id: 4036

  • Item Code/Product Code: Z20 Pro
  • Weight: 0.25kg
₹3,650.00
Ex Tax: ₹3,650.00
Chat via WhatsApp

Mijing Z20 Pro Motherboard Middle Layer Planting Tin Platform for iPhone X to 16 Pro Max

The Mijing Z20 Pro is a professional-grade BGA reballing stencil platform designed for iPhone models from X to 15 Pro Max. It facilitates accurate and efficient reballing of middle-layer PCBs, ensuring damage-free soldering. The fixture securely holds the motherboard, allowing for precise alignment and tin application.

Key Features of the Mijing Z20 Pro: A Deep Dive

1. Precision Laser-Cut Holes

  • A CNC laser cuts each opening for accuracy. This ensures that solder balls fit perfectly. This is important for high-density ICs and BGA chips on iPhones.
  • Why it matters: Reduces solder overflow and guarantees clean joints—no rework required.

2. High-Grade Stainless Steel Body

  • Made with durable, heat-resistant stainless steel, the Z20 Pro withstands repeated heat cycles without warping.
  • Why it matters: Ensures consistent reballing across sessions, even under intense hot air exposure.

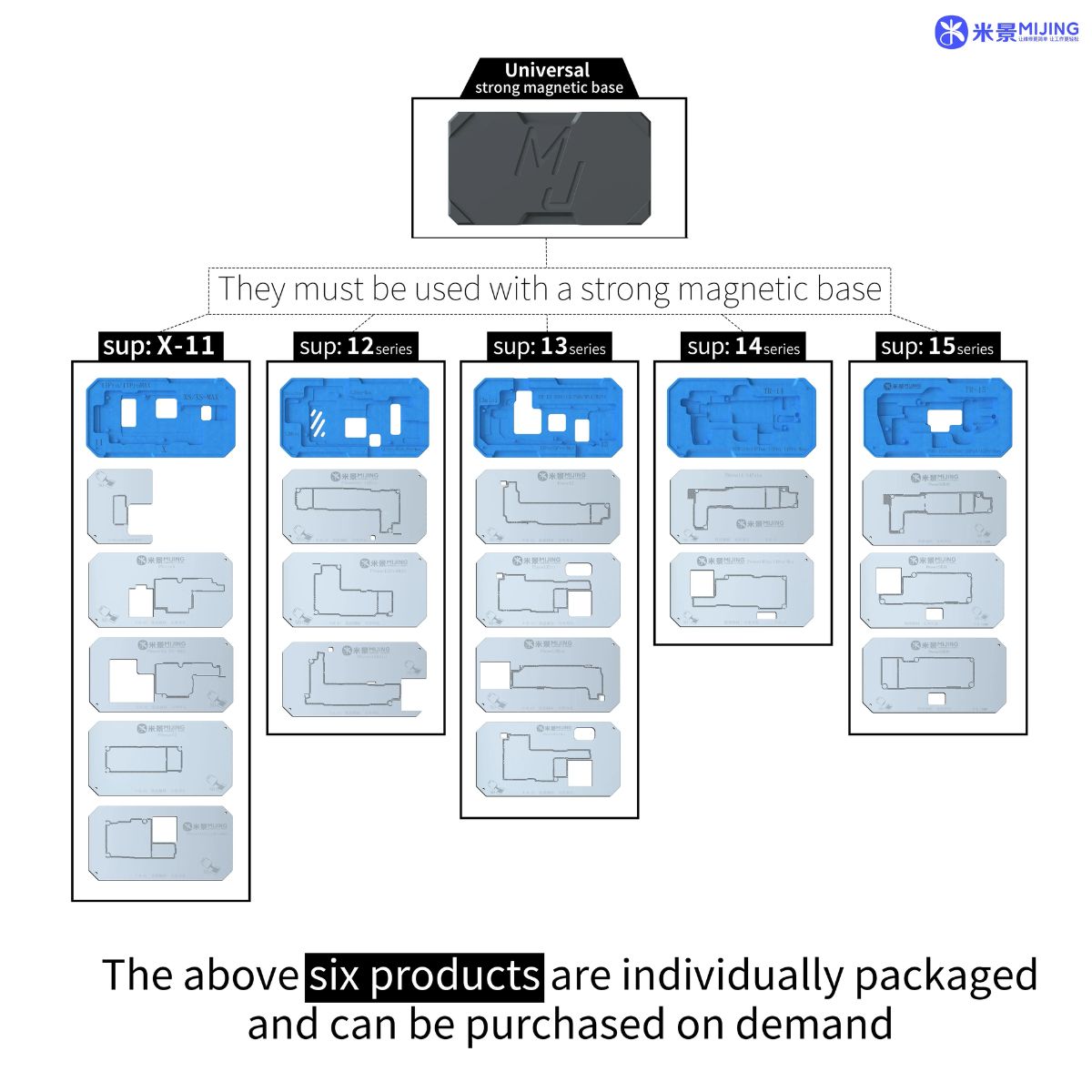

3. Broad iPhone Compatibility

  • It covers all models from iPhone X to 16 Pro Max. This makes it a useful tool for technicians working on both old and new phones.
  • Why it matters: No need to switch stencils across different jobs—one tool fits all mid-layer tasks.

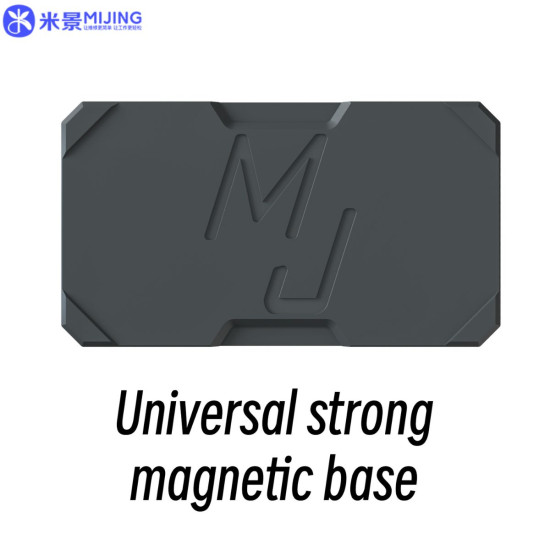

4. Magnetic Anti-Slip Base

  • The platform has a magnetic grip and anti-slip surface to hold logic boards steady during rework.
  • Why it matters: Prevents movement, ensures alignment, and reduces chances of solder mistakes.

5. Easy to Clean and Maintain

  • Non-stick coating and simple geometry make cleaning fast with isopropyl alcohol or ultrasonic cleaners.
  • Why it matters: Saves technicians time and maintains stencil accuracy longer.

Tips for Optimal Use and Maintenance:

  • Install the main board on the platform
  • Cover the BGA reballing stencil on the mainboard
  • Evenly spread tin on the cover of the reballing stencil
  • Remove the reballing stencil cover
  • Take out the motherboard and cooperate with the hot air gun to solidify the tin point

Package includes:

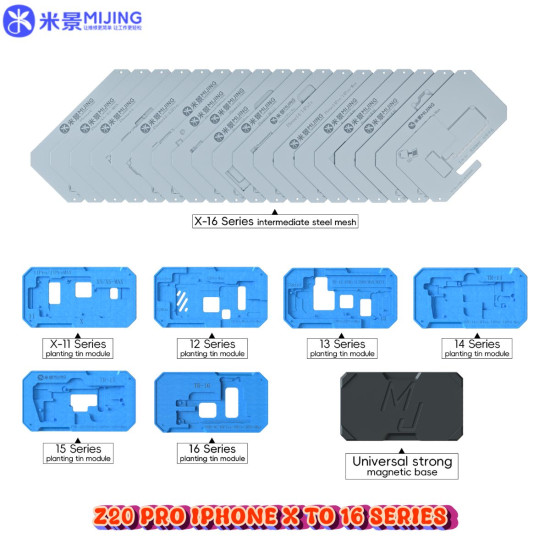

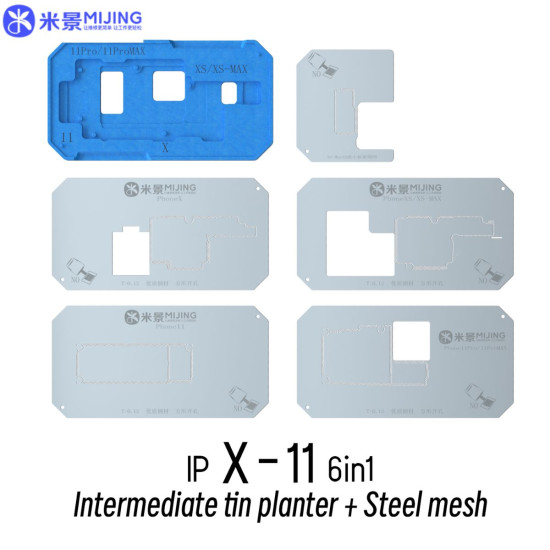

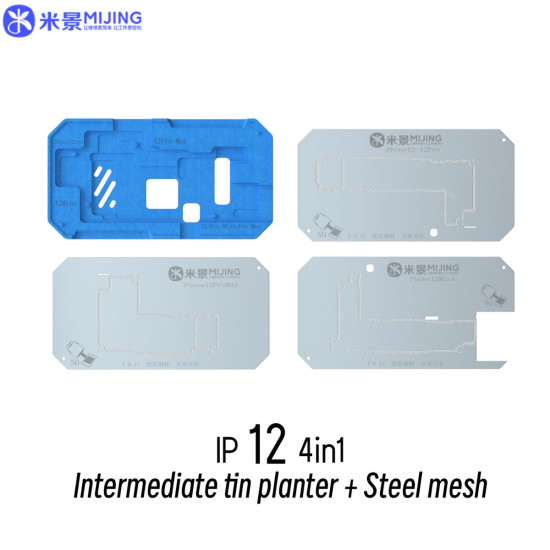

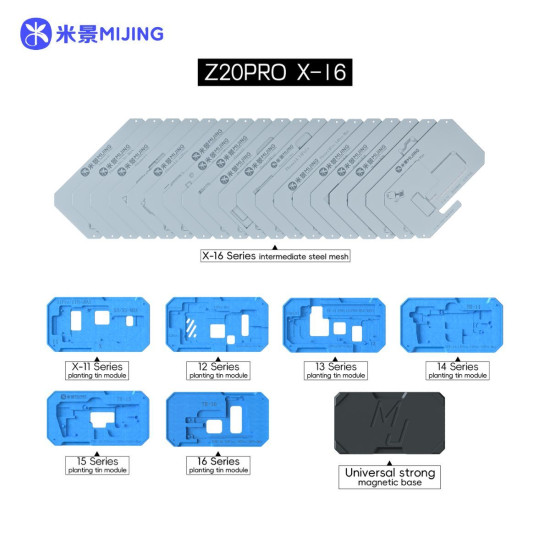

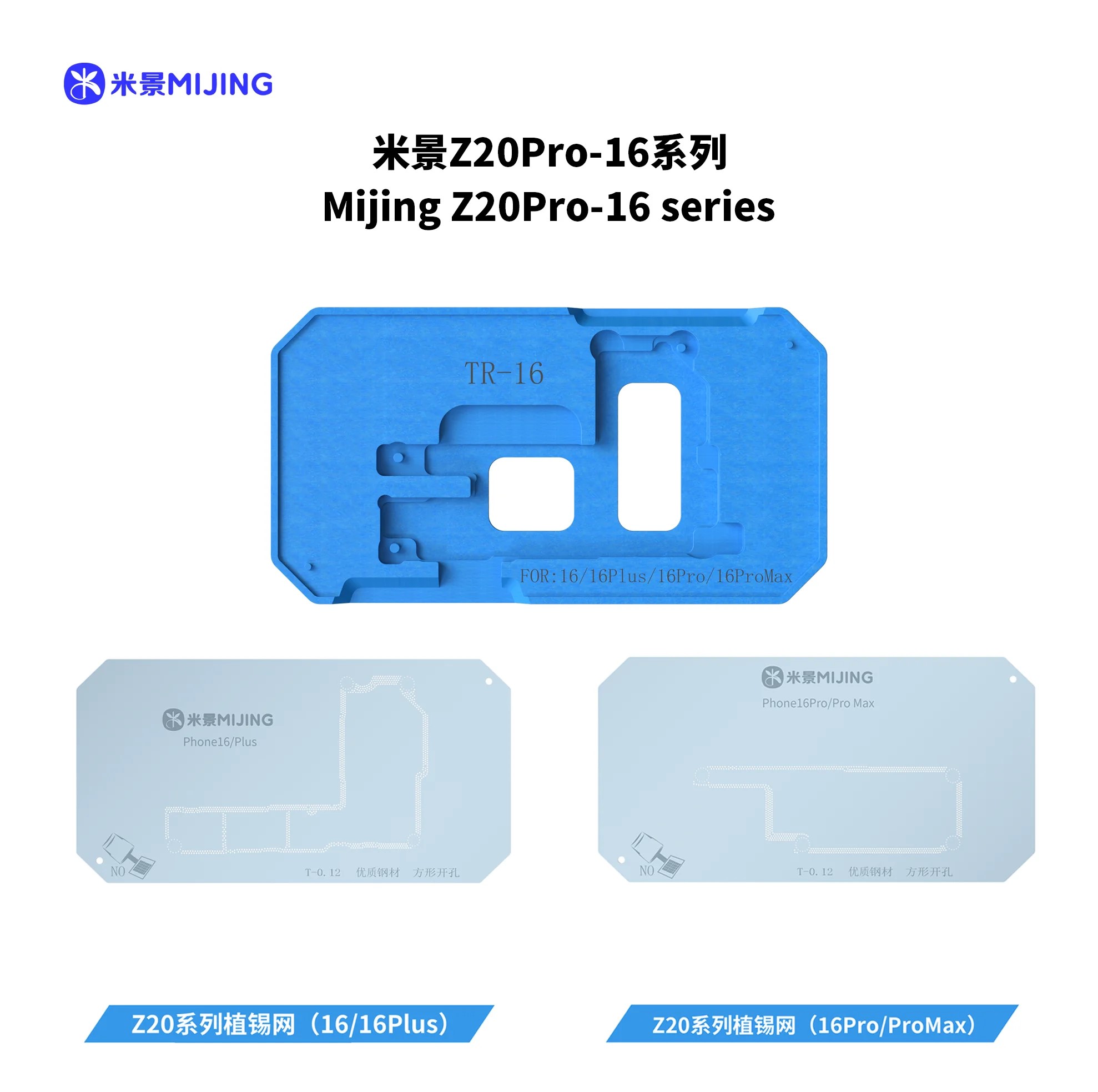

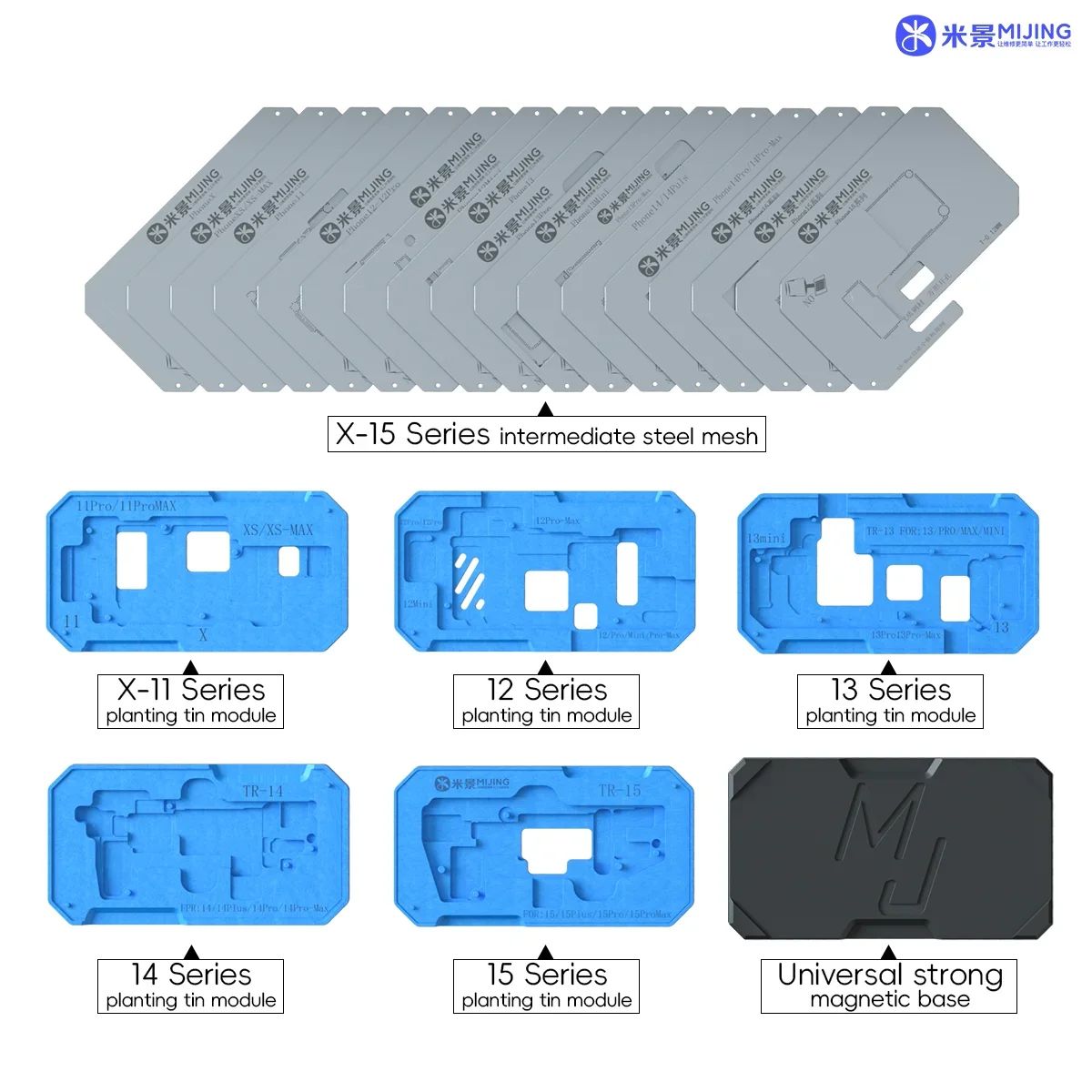

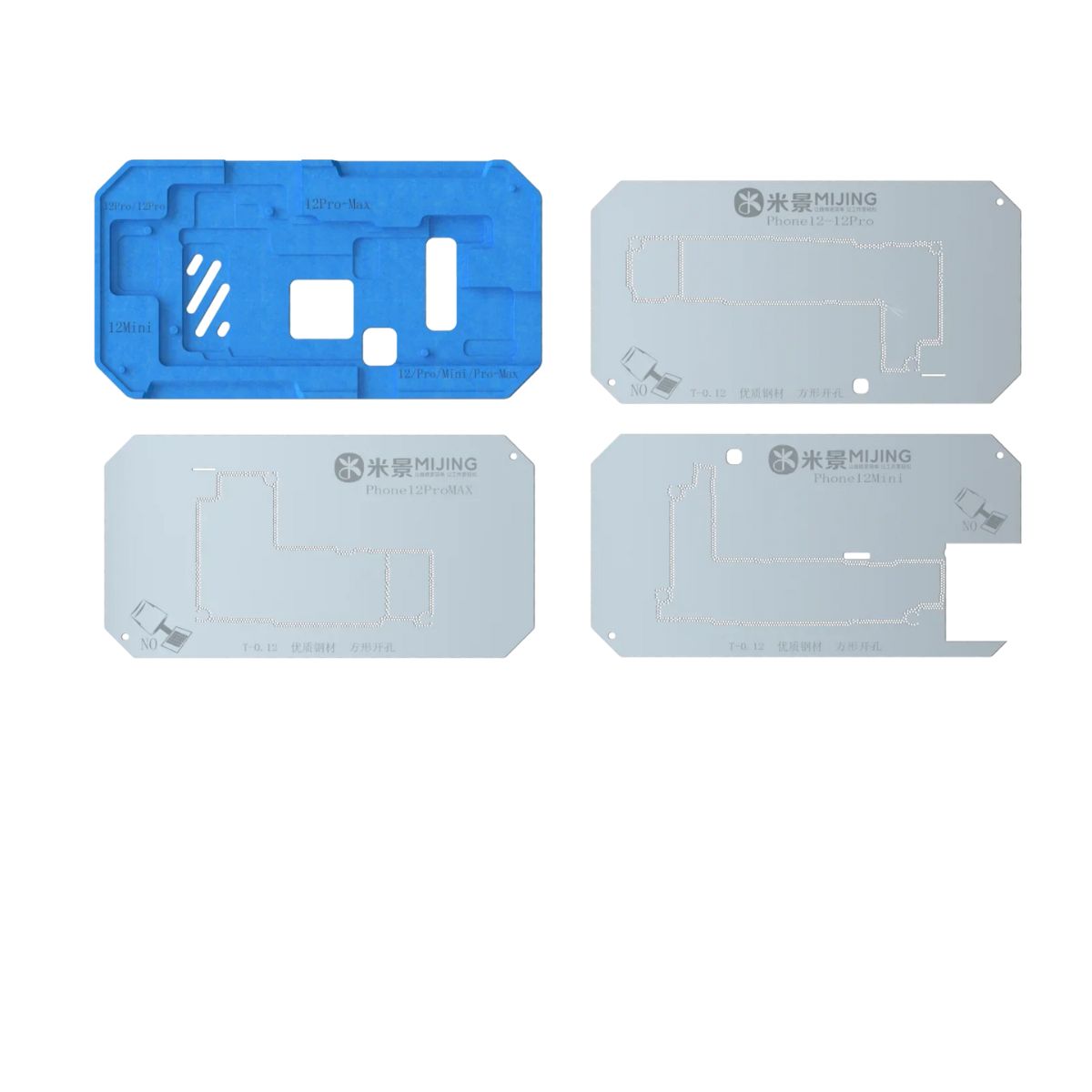

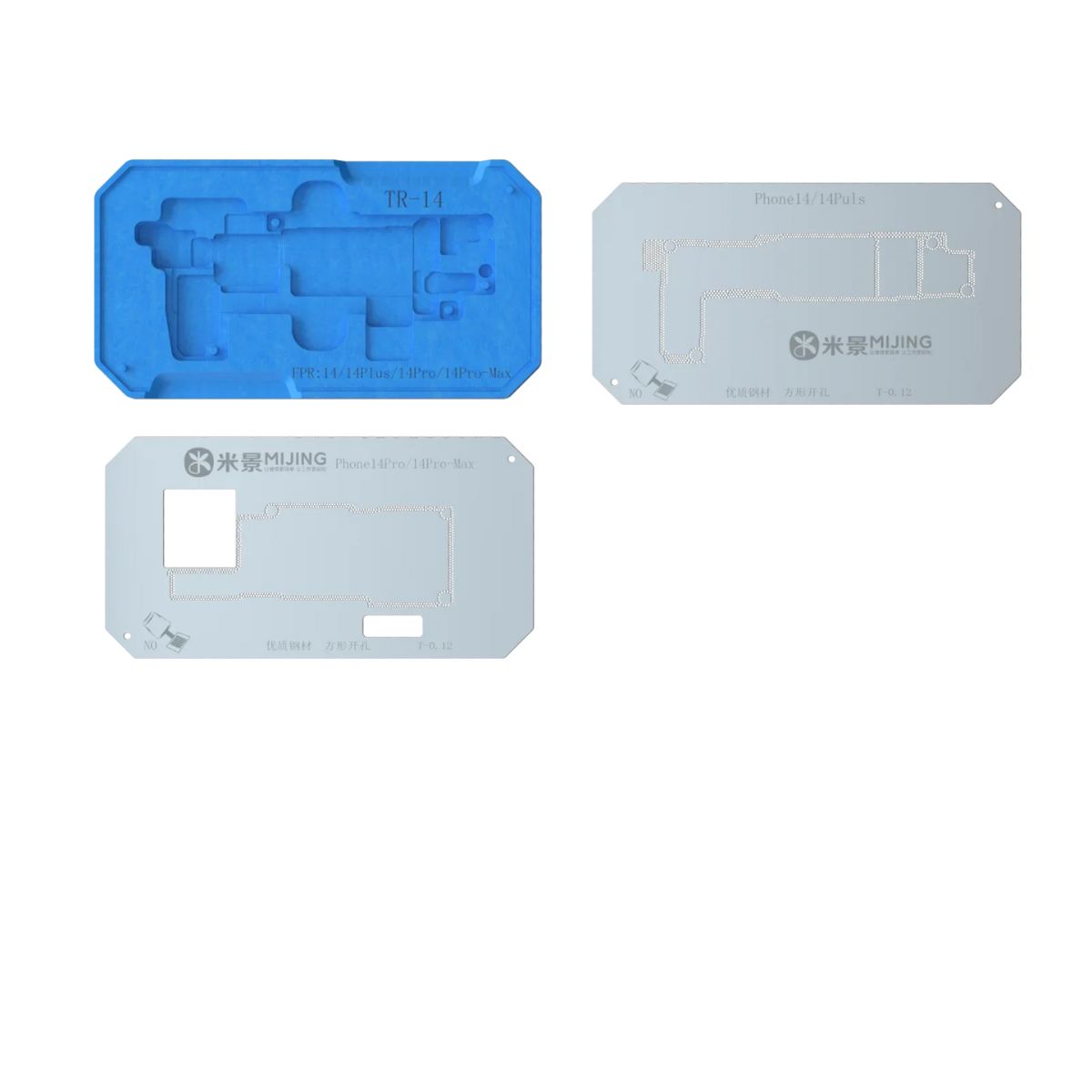

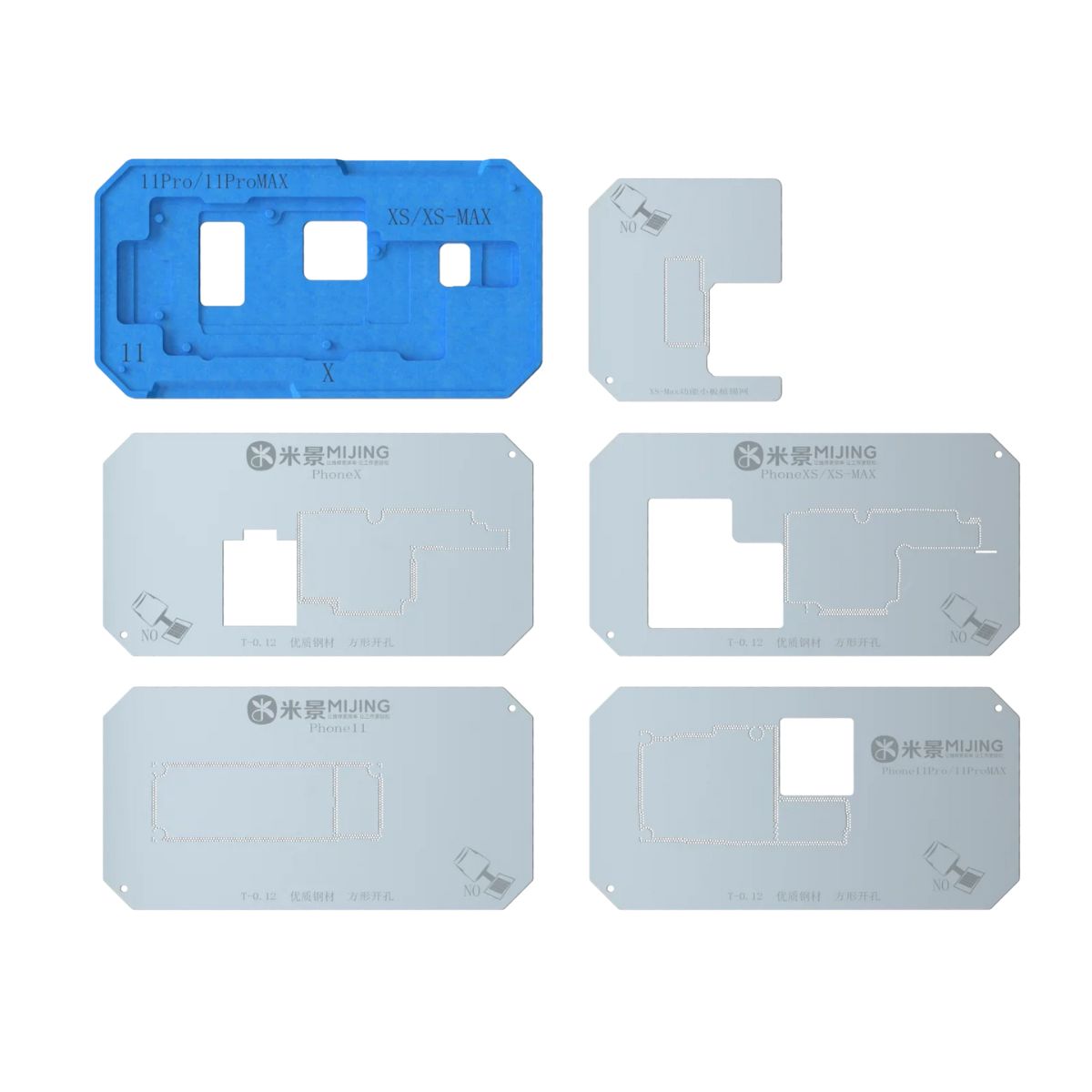

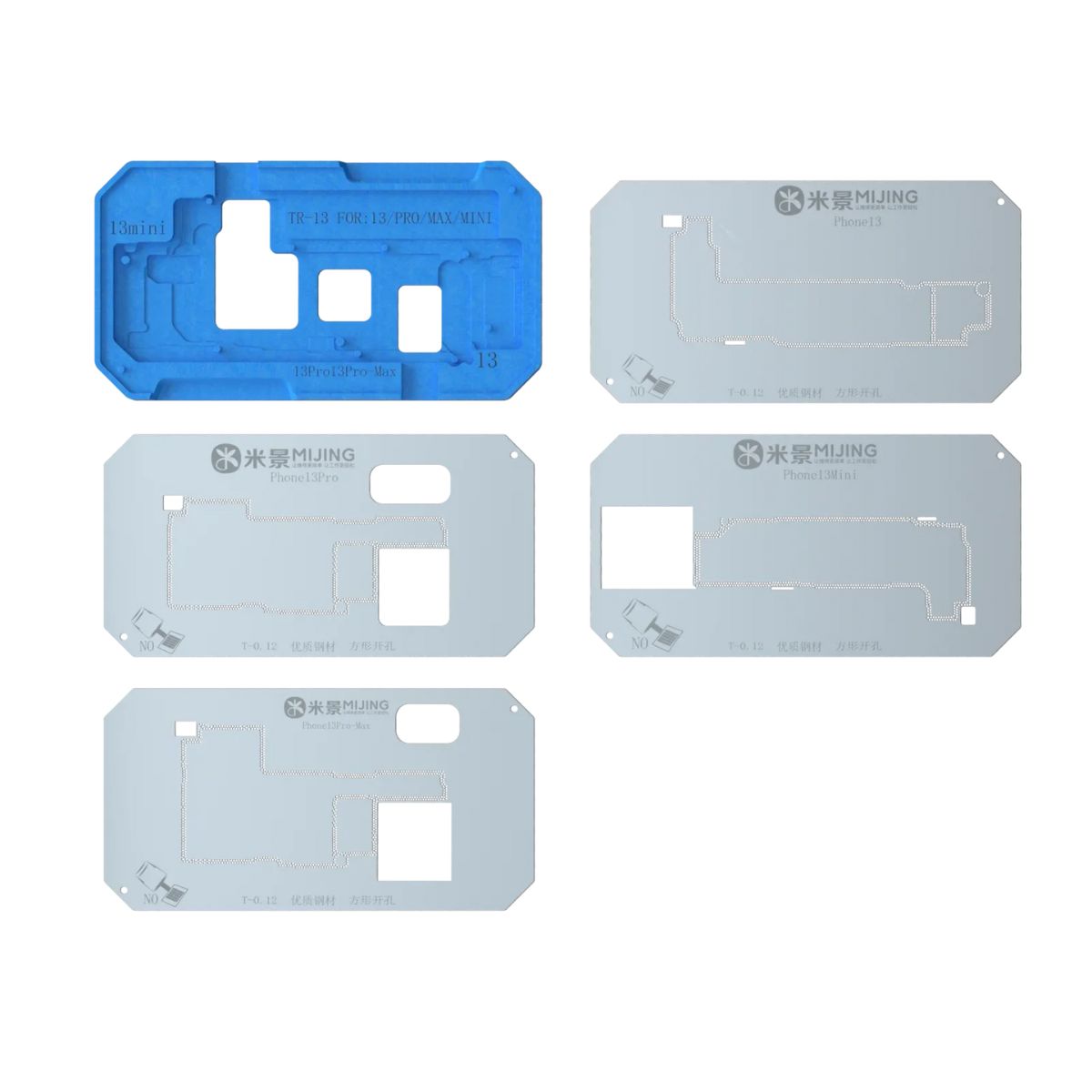

     1 x Z20 Pro Set With Base & Stencils
