- Item Code/Product Code: RF 7050+4KC1
- Weight: 6.00kg
RF4 RF-7050 Prime With RF4 4KC1 HD Camera (3D Continuous Zoom) 7X~50X Trinocular Stereo Microscope With 0.5X CTV Camera Zoom Lens & LED Adjustable Light - 2025 Edition (Exclusive Quality)
Features:
- 7X-50X zoom magnification power with crisp sharp images
- Widefield of view* Sturdy all-metal pillar stand
- High resolution with great flatness and contrast, giving sharp and clear images
- Sharp stereo erect images with a wide field of view
- Crystal clear original true-co microscope images
- Large working distance Sturdy all-metal table stand
- Accurate alignment reduces eye strain for longer periods of viewing
- Full optical glass elements
- Adjustable interpupillary distance
- Adjustable bracket, lifting range:50mm; easy to operate
- Viewing head: Binocular head Inclined at 45 degrees, Continuous magnification objective lens 6.5X-67X, interpupillary distance 54-76mm, bilateral visibility adjustable
- Eyepiece: WF10X/22mm High Eyepiece
- Effective distance: 100mm, the use of auxiliary objective lens can be extended 30mm-287mm
- Magnification:7X-50X
Specification:
- Product Name: Industrial grade trinocular stereo microscope
- Product Model: RF 7050-Prime
- Product Size: 195*253*225mm
- Magnification: Standard 0.7-4.5X(Optional 2.1X-180X)
- Eyepiece: 0.5X CTV HD electron microscope
- Objective Len: 0.7X-50X
- Eyepiece: WF10X22 High Eyepiece
- Observation Head: Binocular observation head 45°tilt, eyepiece pupil spacing adjustment range 54-76mm; Binocular visual acuity adjustable
- Working distance: The effective distance is 100mm, and the purchase of an auxiliary objective lens can be extended to 30-287mm
- Focusing bracket: Adjustable elasticity of focusing hand-wheel, lifting range 50mm
- Base Size: 195*256*20mm
- LED light source: High brightness cold white light source, can be adjusted freely
- Applicable Fields: Teaching Demonstafion, PCB electronics signal mobile phone processing and repair Component Assembly, electronic component detection
Package Content :
1x Trinocular Stereo Microscope RF4 RF7050-Prime
1x A pair of WF10X/22MM eyepiece
1x Storage Box Stand For Tweezer / Screwdriver
1x One Pair of rubber eye guard ( Round )
1x One Pair of rubber eye Guard ( RF-EM5 )
1x One dust cover Plastic
1x Dust Protection Glass
1x One Big Microscope Base (380MM * 250MM)
1x 0.5X CTV Zooming Camera Lens
1x LED Light With Adjustable Controller (144 LED BIG)
1x 360 Degrees Bracket Ring - (Newly Added)
1x Lens Cleaning Cloth - RF4
1x Manual Book

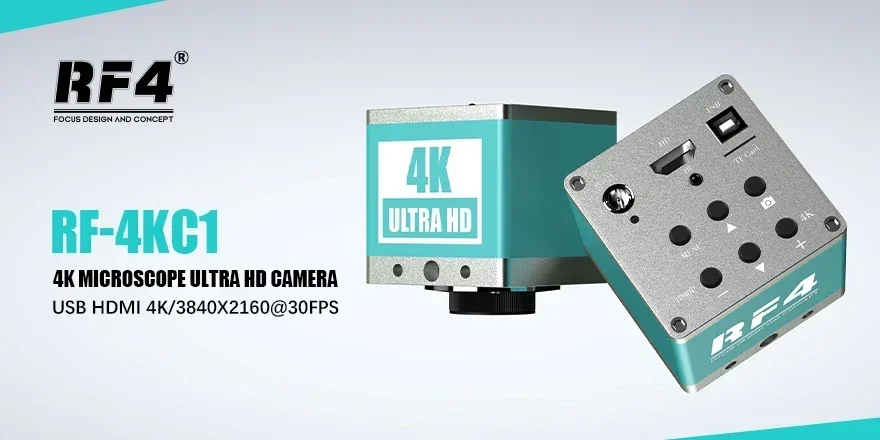

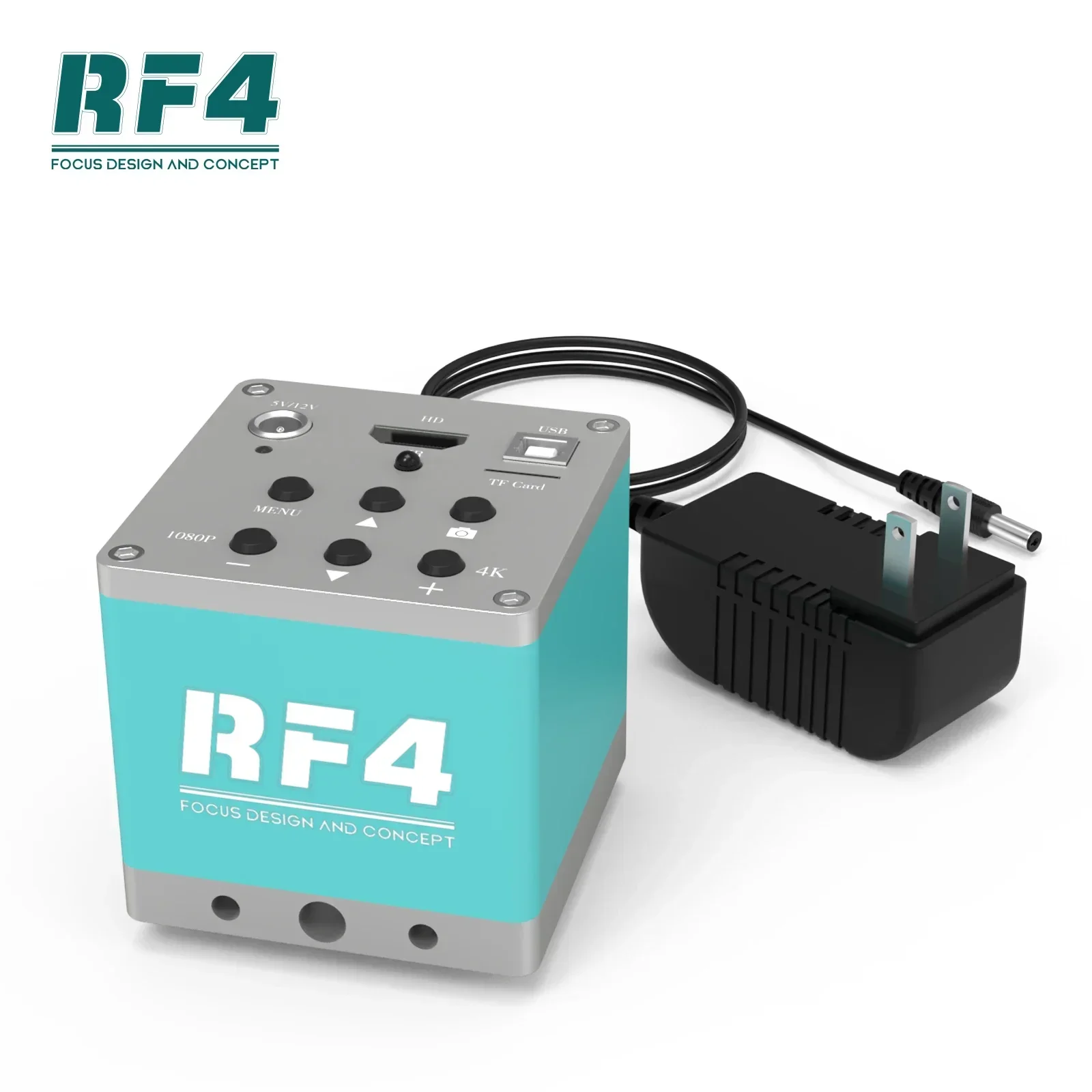

RF4 4K Ultra HD / 1080P HDMI USB Industrial Electronic Digital Video Microscope Camera With Recording Features
Features:
RF4 RF-4KC1 4k Hdmi & Usb Mount Digital Video Microscope camera

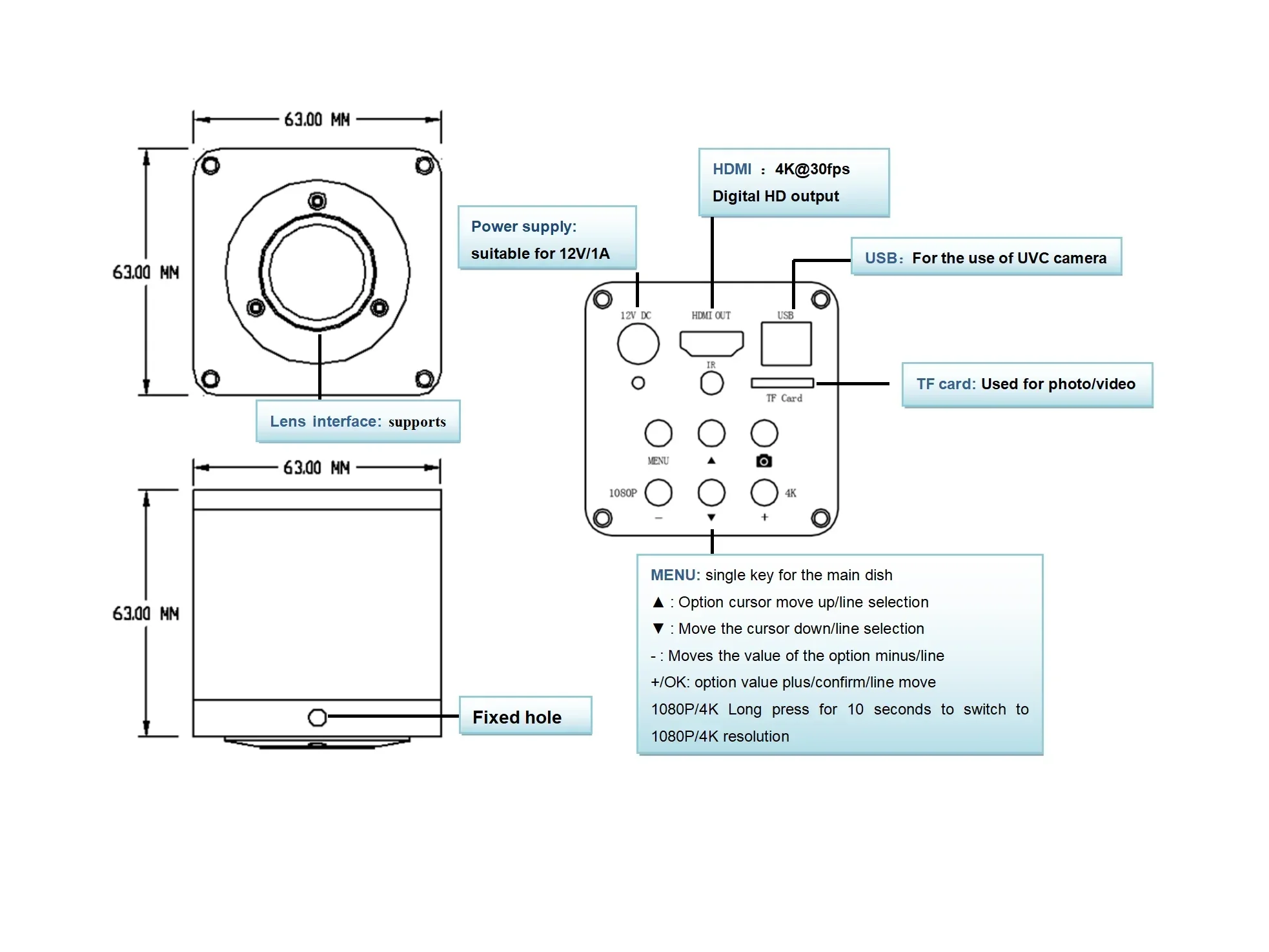

1. The microscope is connected to the host computer through C/CS interface, and tightened to prevent falling;
2. HDMI connection to monitor. Display should support 3840*2160/1920*1080 resolution;
3. Use USB interface to connect computer for UVC camera;
4. Connect the power adapter to the host through the DC port.
5. The TF card can be used with related functions: taking photos, video recording, playback, etc. If necessary, please insert it;
6.Switch on the power adapter, and the host indicator shows green for 10 seconds.
Tips:

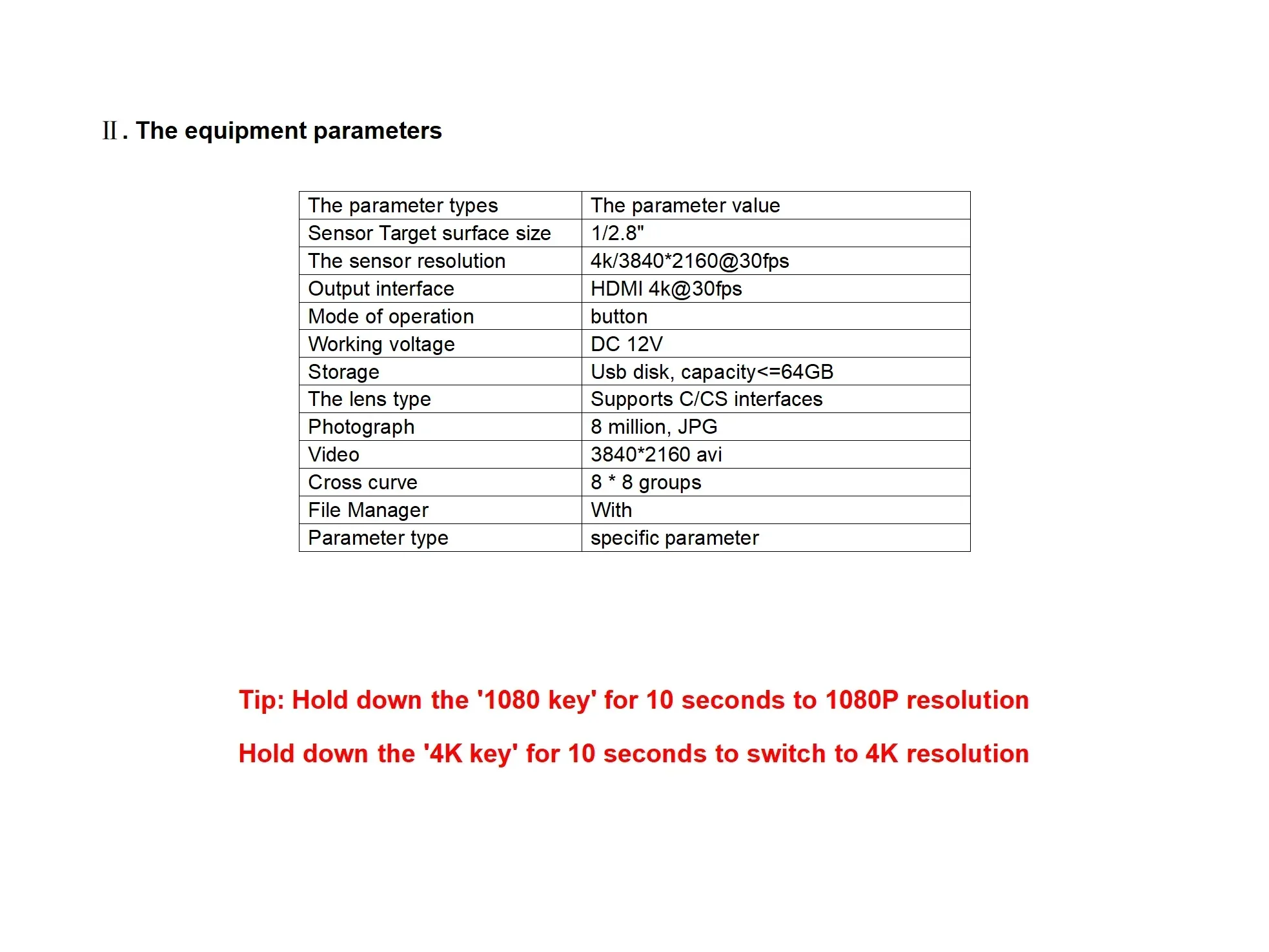

Hold down the ‘1080 key’ for 10 seconds to 1080P resolution.
Hold down the ‘4K key’ for 10 seconds to switch to 4K resolution.

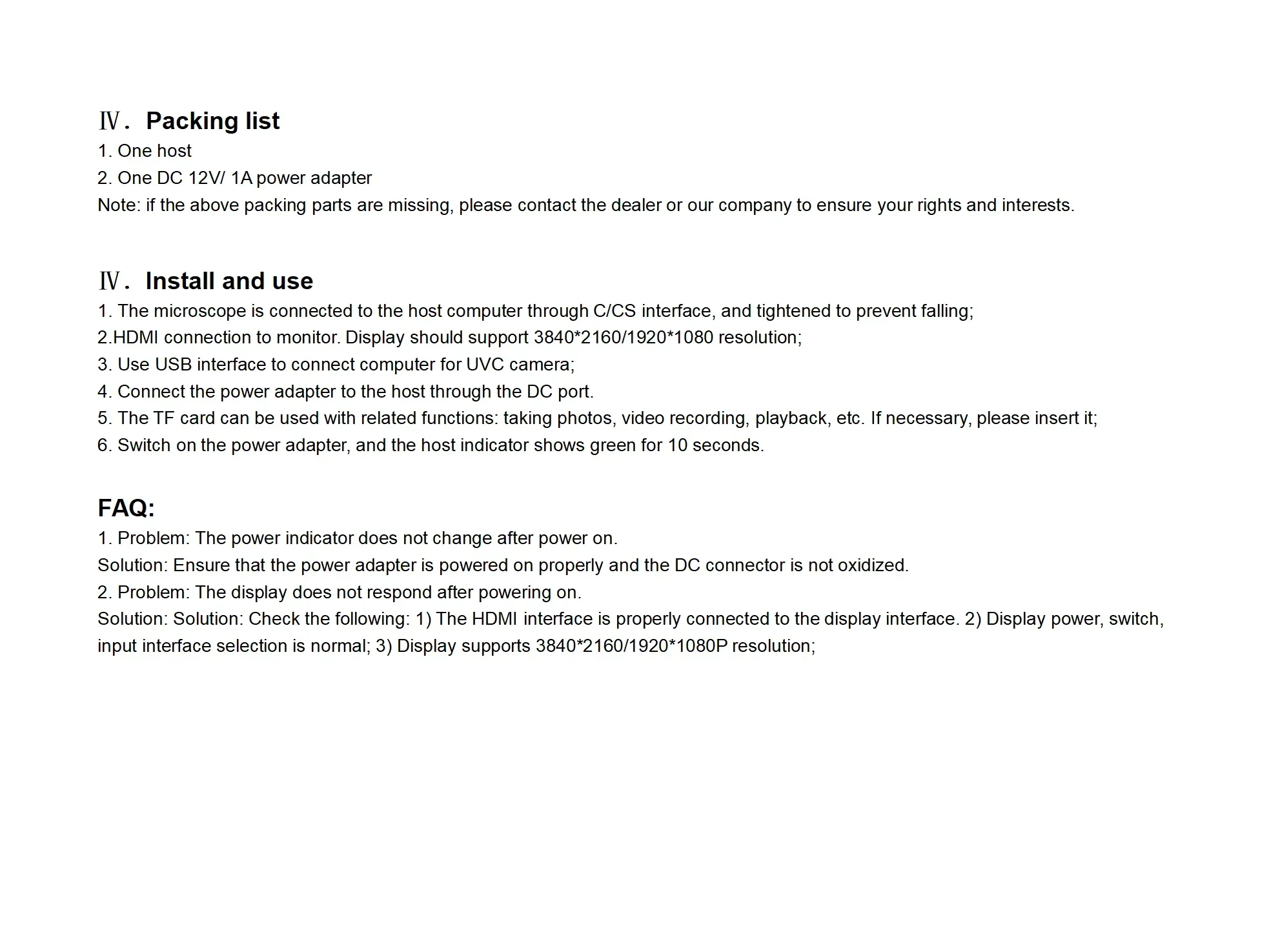

Install and use:
1. The microscope is connected to the host computer through C/CS interface, and tightened to prevent falling;
2. HDMI connection to monitor. Display should support 3840*2160/1920*1080 resolution;
3. Use USB interface to connect computer for UVC camera;
4. Connect the power adapter to the host through the DC port.
5. The TF card can be used with related functions: taking photos, video recording, playback, etc. If necessary, please insert it;
6.Switch on the power adapter, and the host indicator shows green for 10 seconds.
Package includes:

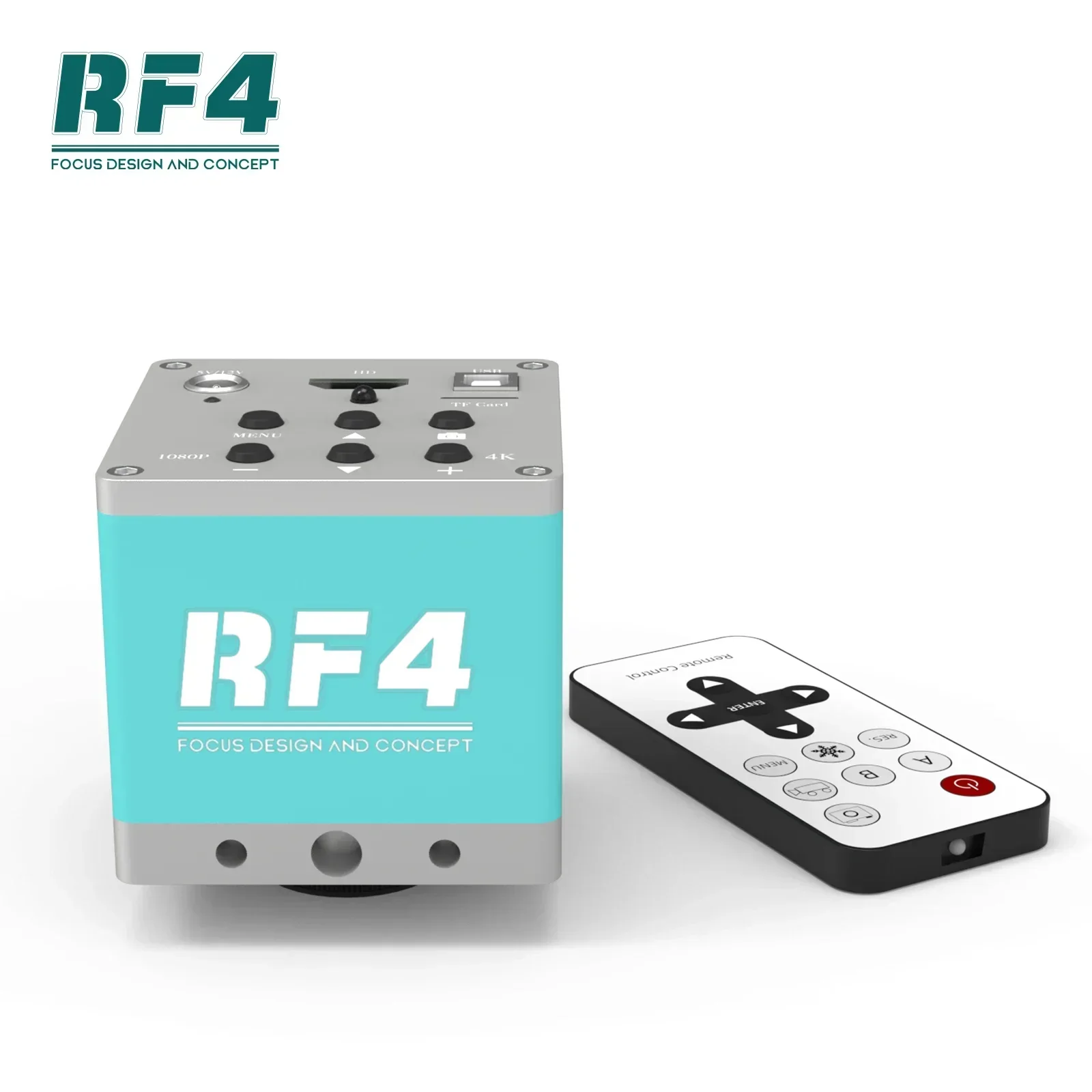

- 1 x RF-4KC1 Camera
- 1 x Remote control
- 1 x Power cable
